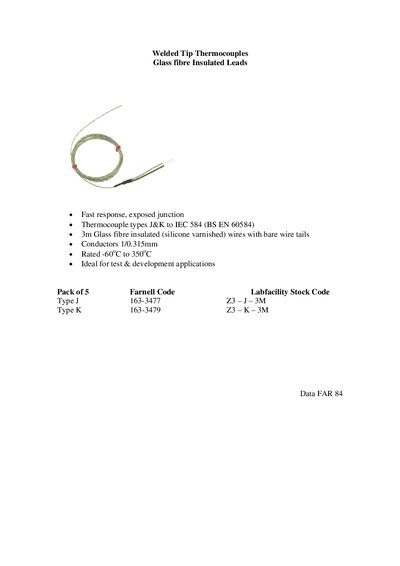

The document describes the features of the Welded Tip Thermocouples Glass fibre Insulated Leads, including fast response, exposed junction, and suitability for test and development applications.
The welded tip thermocouples feature a fast‑response exposed junction and are available in IEC‑standard types J and K. Each lead is 3 m long, insulated with glass fibre that is silicone‑varnished, and uses 1/0.315 mm conductors.
These thermocouples are supplied in packs of five and are intended for test and development applications. Part numbers and distributor codes are provided (e.g., Farnell Labfacility stock codes 163‑3477 Z3 for J‑3M and 163‑3479 Z3 for K‑3M).
| Thermocouple types | J & K |
|---|---|
| Insulation material | Glass fibre (silicone varnished) |
| Conductor size | 1/0.315 mm |
| Temperature rating | -60 °C to 350 °C |
| Lead length | 3 m |
They are rated for temperatures from –60 °C up to 350 °C.
The leads are insulated with glass fibre that has been silicone‑varnished.
Both IEC‑standard type J and type K thermocouples are offered.
