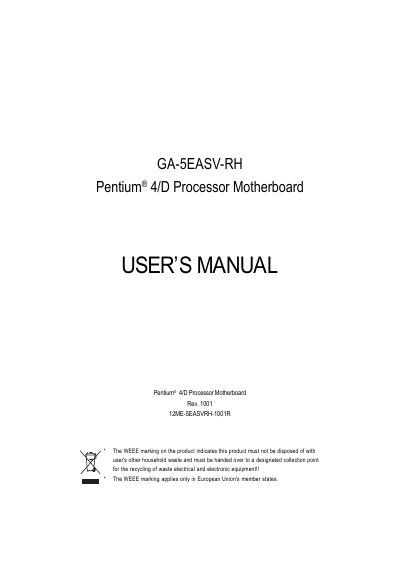

This document is the user manual for the GA-5EASV-RH Pentium® 4/D Processor motherboard, describing the features and components of the motherboard.
This manual covers the complete hardware installation process for the GA-5EASV-RH ATX motherboard, including CPU and heat‑sink mounting, memory module installation, connector wiring, and jumper settings. Safety precautions such as using an antistatic wrist strap and unplugging the system are also detailed.
The document also describes BIOS configuration, Intel RAID options, and driver installation for the Intel 3000 chipset, XGI Volari Z7 graphics, and dual Intel 82573GbE LAN controllers. Appendices list acronyms and provide reference tables for components and specifications.
| Form factor | ATX |
|---|---|
| Supported CPUs | Intel Pentium 4 / Pentium D (LGA 775) |
| Chipset | Intel 3000 |
| SATA ports | 4 SATA 3.0 Gb/s connectors |
| On‑board graphics | XGI Volari Z7 with 16 MB SDRAM |
| USB ports | 8 USB 2.0 ports (4 per cable) |
| BIOS | Phoenix BIOS on 8 Mb flash ROM |
The board uses a Phoenix BIOS stored in an 8 Mb flash ROM.
