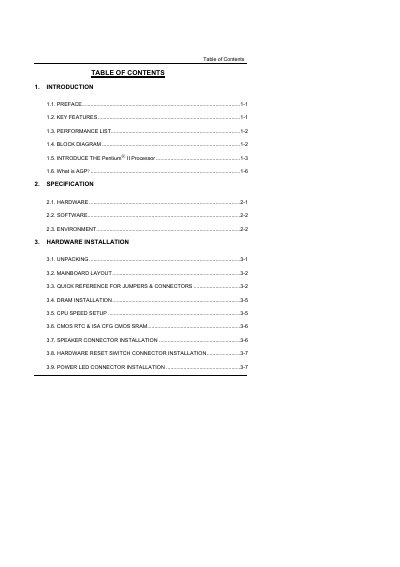

This document describes the features and characteristics of the 6BXS motherboard, including key features, performance list, block diagram, introduction to the Pentium II processor, and AGP explanation.
This manual covers the introduction, key features, and performance data of the 6BXS motherboard, which is based on an Intel Pentium II processor and Intel 440BX chipset. It describes the board layout, supported memory types, expansion slots, and peripheral connections.
Detailed sections guide users through hardware installation steps, BIOS setup options, and system configuration, including CPU speed setup, jumper settings, and power management. The document also lists technical specifications such as CPU, memory, I/O buses, and SCSI/IDE ports.
| CPU | Pentium II processor 200–633 MHz |
|---|---|
| PCI Slots | Four 33 MHz Master/Slave PCI slots |
| AGP Slot | One 66 MHz / 133 MHz AGP slot |
| SCSI Ports | One Ultra Wide SCSI port and one Ultra SCSI port |
| IDE Ports | Two Ultra DMA/33 IDE channels (four IDE devices) |
The board includes four 33 MHz Master/Slave PCI slots.
It supports one Ultra Wide SCSI port and one Ultra SCSI port.
The motherboard supports Intel Pentium II processors from 200 MHz to 633 MHz.
