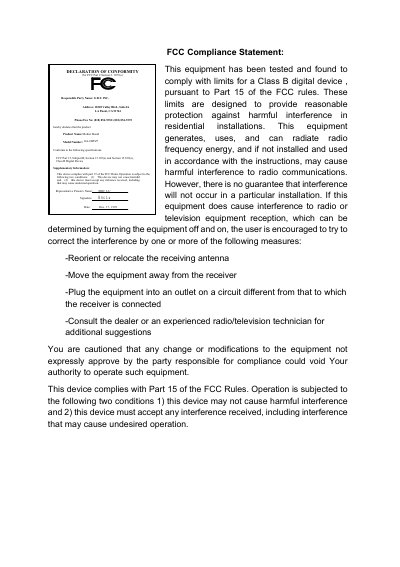

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna -Move the equipment away from the receiver -Plug the equipment into an outlet on a circuit different from that to which the receiver is connected -Consult the dealer or an experienced radio/television technician for additional suggestions You are cautioned that any change or modifications to the equipment not expressly approved by the party responsible for compliance could void Your authority to operate such equipment. This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions 1) this device may not cause harmful interference and 2) this device must accept any interference received, including interference that may cause undesired operation.
This manual covers the GA-6WFZ7 series motherboard, detailing its layout, component descriptions, and installation procedures. It includes a checklist of items, a summary of features, and diagrams of the board and block architecture.
The document also provides step‑by‑step instructions for BIOS configuration, memory and IDE installation, suspend‑to‑RAM setup, and BIOS flashing. Appendices contain acronyms, BIOS flash procedures, and driver removal guidance.
| Form factor | FlexATX (22.8 cm x 19.1 cm) |
|---|---|
| CPU socket | Socket 370 |
| Chipset | Intel 810 (82810/82810‑DC100/82810E) with Intel 82801AA I/O controller |
| Memory slots | 2 × 168‑pin DIMM, PC‑100 SDRAM 16 MB–512 MB, 3.3 V only |
| Expansion slots | 1 × 32‑bit PCI, 1 × TV/DFP, 1 × AMR |
| USB ports | 4 |
| LAN | Intel 82559 (optional) |
| Audio | Aureal AU8810 (optional) |
| BIOS | Award BIOS, 4 M‑bit FLASH ROM |
It supports two 168‑pin DIMM sockets for PC‑100 SDRAM ranging from 16 MB to 512 MB, using 3.3 V modules only.
The motherboard includes four USB ports.
