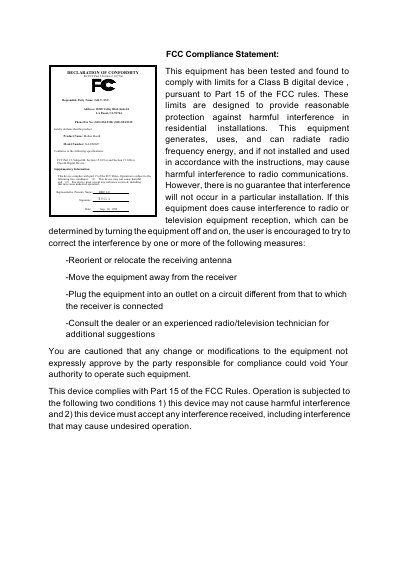

This document is a FCC compliance statement, which mainly introduces that this device complies with the limits set for a Class B digital device under Part 15 of the FCC rules.
This installation guide covers the GBT 6WOZ7 motherboard, a Mini‑NLX board built for Intel® 810 Socket 370 processors. It includes FCC compliance statements, a list of package contents, and a detailed feature summary that describes the chipset, memory support, expansion slots, audio, LAN, USB, and other integrated components.\n\nThe manual walks the user through hardware installation, CPU and memory configuration, performance testing, and BIOS configuration. Appendices provide driver installation steps, INF update instructions, and a BIOS flashing procedure using AWDFlash or AMIFlash utilities. This manual is written in Chinese.
| Form factor | Mini NLX (25.7 cm × 20.5 cm) |
|---|---|
| CPU socket | Intel Celeron Socket 370 |
| L2 cache | 128 KB |
| Chipset | Intel FW82810 (GMCH) and Intel 82801AA I/O Controller Hub (ICH) |
| Memory support | 2 × 168‑pin SDRAM DIMM, 16 MB–256 MB, 3.3 V only |
| Expansion slots | 2 × 32‑bit PCI, 1 × 16‑bit ISA (optional) |
| Audio codec | YAMAHA YMF‑744 (optional) and AC’97 codec |
| LAN controller | Intel GD 82559 (optional) |
| USB ports | 2 |
| BIOS | Award BIOS, 4 Mbit flash |
It supports 168‑pin SDRAM DIMM modules ranging from 16 MB to 256 MB, operating at 3.3 V.
