GA-7A8DW AMD Socket 940 Dual Processor System Board User Manual

GA-7A8DW is a motherboard from GIGABYTE that supports AMD Opteron processors and can run at 400, 800, 1200, and 1600 MT/s.

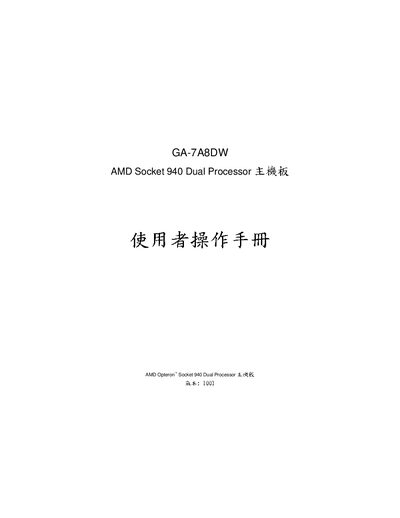

GA-7A8DW AMD Socket 940 Dual Processor System Board User Manual - cover page
Brand
GA-7A8DW
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
69
File format
PDF
File size
4.7 MB
Published
09 April, 2012
Updated
30 September, 2023
MD5 checksum
767284CB4C77AFC3E62BCE84EB891DE7
PDF
GA-7A8DW AMD Socket 940 Dual Processor System Board User Manual PDF

About this manual

This manual covers the physical layout of the GA-7A8DW motherboard, including connector locations, power pins, and component placement. It also explains how to install CPUs, memory modules, and expansion cards, and provides guidance on proper grounding and handling to avoid damage.

Further sections describe BIOS and chipset configuration, I/O device setup, PCI and AGP settings, hardware monitoring, and security features. Technical reference tables and RMA contact information are included for service and support. This manual is written in Chinese.

What's inside

  • Board Layout
  • Installation Guide
  • BIOS Configuration
  • Chipset Configuration
  • I/O Device Configuration
  • PCI Configuration
  • Hardware Monitor
  • Security Settings
  • Technical Reference
  • RMA Information

Specifications

DDR memory slots4 slots
Super I/O chipWinbond W83627IIE
SMBus supportEnabled

Frequently asked questions

How many DDR memory slots does the GA-7A8DW board have?

The board provides four DDR memory slots.
