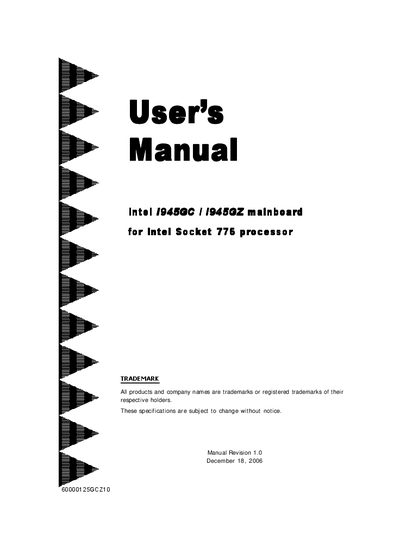

lntol i945GC/i945GZ mainboard for lntel Socket 775 processor User's Manual

This manual introduces the features and characteristics of the Intel i945GC / i945GZ mainboard

Brand: lntol
Category: Motherboard
Document type: User Manual
Language: English
Pages: 24
File format: PDF
File size: 2.4 MB
Published: 09 April, 2012
Updated: 30 September, 2023
MD5 checksum: 1946FE69D939933A1F086ABC68B9DFC4
PDF: lntol i945GC/i945GZ mainboard for lntel Socket 775 processor User's Manual PDF

About this manual

This manual provides the complete documentation for Intel's I945GC and I945GZ motherboards, covering package contents, mainboard features, hardware specifications, and system block diagram. It also includes detailed instructions for CPU installation, jumper settings, memory configuration, and rear I/O connections.

Additional sections guide users through BIOS setup, driver and utility installation, BIOS flashing procedures, and HotKey functions for troubleshooting and quick access. Safety and handling precautions are emphasized throughout the document.

What's inside

Introduction
Installation
BIOS Setup
Driver & Utility
Flashing the BIOS
HotKey Summary

Specifications

Chipset	Intel i945GC/i945GZ + ICH7
Integrated VGA	DirectX 9.0, 400 MHz RAMDAC, up to 2048×1536@75 Hz
USB Ports	Eight USB 2.0 connectors (four rear)
LAN (optional)	Realtek RTL8110S Gigabit Ethernet or RTL8100C 10/100 Ethernet
SATA II	Four ports, up to 300 MB/s

Frequently asked questions

What is the maximum system memory supported by this motherboard?

The board supports up to 2 GB of DDR2 memory across its two DIMM slots.
