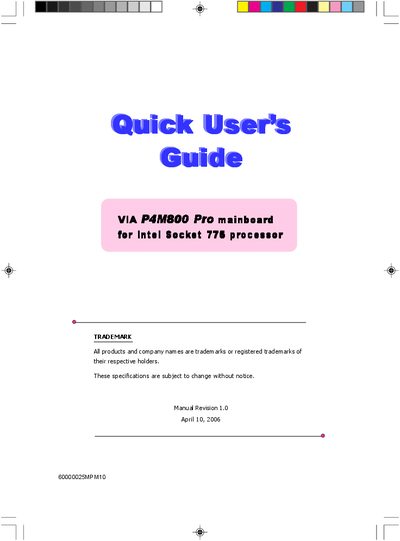

The document introduces the VIA P4M800 Pro mainboard, which is compatible with Intel Socket 775 processors, and provides the features and characteristics of the product.
This Quick User's Guide provides essential information for setting up the VIA P4M800 Pro mainboard, including handling precautions, CPU and memory installation, and connecting peripherals. It also covers BIOS features, driver installation, and troubleshooting steps.
The document includes a specification overview, step‑by‑step assembly instructions, and details on supported operating systems, networking, audio, and expansion options, helping users get the board up and running safely and efficiently.
| CPU Socket | LGA775 |
|---|---|
| Chipset | VIA P4M800 Pro + 8237R Plus with VIA Unichrome Pro graphics core |
| Memory Slots | Two 240‑pin DDR2 SDRAM DIMM sockets |
| Maximum Memory | 2 GB |
| PCI Slots | Three PCI connectors (PCI v2.3) |
| AGP Slot | 1.5 V AGP‑8X (AGP v3.0) |
| IDE Interfaces | Two IDE ports, UDMA‑33/66/100/133 |
| USB Ports | Eight USB 2.0 connectors |
| SATA Ports | Two SATA ports, 150 MB/s, RAID 0/1/JBOD |
| LAN Controller | 10/100 Mbps Fast Ethernet (VIA 6103L PHY) |
| Audio Codec | Realtek ALC‑655, 2‑ or 6‑channel, AC’97 v2.3 |
| BIOS | Award Plug & Play BIOS with ACPI S3 support |
| Form Factor | 245 mm × 220 mm (Micro‑ATX) |
| Supported Operating Systems | Windows 98, Windows 2000, Windows XP |
It uses an LGA775 socket for Intel processors.
The board provides two 240‑pin DDR2 SDRAM DIMM sockets.
A 10/100 Mbps Fast Ethernet controller with a VIA 6103L PHY is built in.
