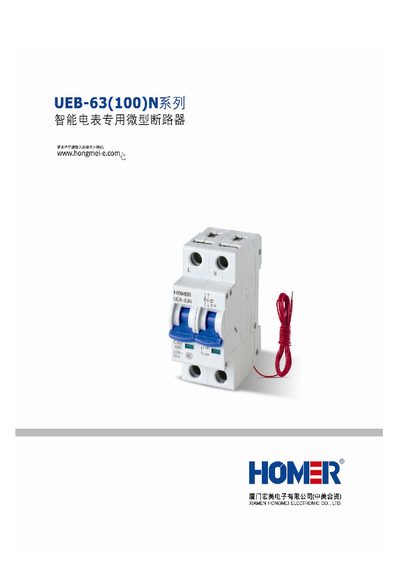

UEB-63(100)N series intelligent meter dedicated miniature circuit breaker is a limited-current high-breaking capacity miniature circuit breaker with overload, short circuit and intelligent undervoltage release function. It is suitable for AC 50Hz/60Hz, rated voltage of 230V/400V, rated current not exceeding 100A circuits, and can remotely control circuit disconnection or automatic signal control disconnection, and at the same time protect the circuit against overload and short circuit. It can also be used for infrequent switching operations.
This manual describes the UEB-63(100)N series micro circuit breaker designed for smart electric meters. It outlines the product’s overload, short‑circuit, and intelligent delayed‑trip functions, and lists the applicable standards (GB10963, IEC60898).\n\nThe document includes technical parameters, wiring diagrams, installation conditions, ordering information, and service guidelines. It is intended for engineers and installers who need to integrate the breaker with single‑phase or three‑phase distribution systems and smart meters. This manual is written in Chinese.
| Rated Voltage | 230 V (1P+N) / 400 V (3P+N) |
|---|---|
| Rated Current Options | 63 A series: 6‑10‑16‑20‑25‑32‑40‑50‑63 A; 100 A series: 63‑80‑100 A |
| Short‑Circuit Breaking Capacity (Ics) | 63AF ordinary type: 6000 A; high‑breaking type: 10000 A; 100AF: 6000 A |
| Mechanical‑Electrical Life | 4000 operations (mechanical) / 2000 operations (delayed‑trip) |
| Operating Temperature Range | -5 °C to +40 °C |
| Maximum Installation Altitude | 2000 m |
The breaker is rated for 230 V (1P+N) or 400 V (3P+N).
It is rated for 4000 mechanical operations and 2000 delayed‑trip operations.
The ordinary 63AF type can break up to 6000 A, while the high‑breaking type reaches 10000 A.
Yes, the installation site must be at an altitude not exceeding 2000 m.
