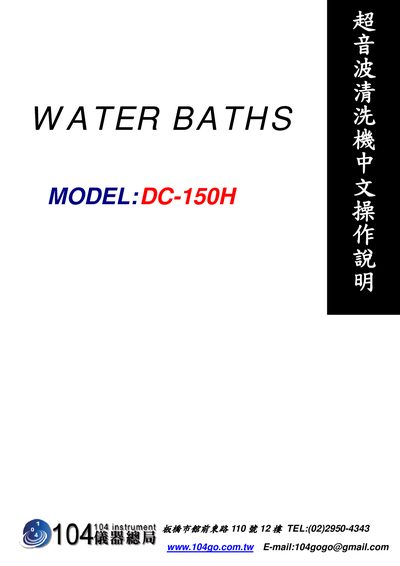

This document provides instructions for operating, product specifications, and simple maintenance checks for the DC-150H water bath ultrasonic cleaner. The cleaner has a oscillation frequency of 40 KHz, a capacity of 7.2L, an output power of 150W, and a heater power of 250W, among other features.
The DC-150H ultrasonic cleaning machine is a compact device designed for cleaning parts with high‑frequency sound waves. It features a stainless‑steel tank, optional heating, and adjustable cleaning time.
This manual explains how to power the unit, set cleaning time and temperature, start and stop operation, and perform routine maintenance. It also lists the technical specifications and provides a simple checklist for keeping the instrument in good condition. This manual is written in Chinese.
| Internal Tank Size | 300x160x150mm (LxWxH) |
|---|---|
| External Dimension | 330x205x330mm (LxWxH) |
| Operating Frequency | 40 kHz (28 kHz ~ 160 kHz) |
| Internal Tank Material | SUS 304 #1.5 mm |
| External Material | Steel Plate Rust‑proof Paint |
| Dust Cover Material | SUS 304 #0.81 mm |
| Output Power | 150 W |
| Timer | Continuous (0) & 99 minutes |
| Heater Power | 250 W |
| Temperature Set Range | Normal ~ 99 °C (DC‑150H) |
| Power Source | AC 100‑120 V |
| Net Weight | 8 kg |
Press the SET TIME button, then press the SET key to increase or decrease the time.
Press the MODE key, select SET TEMP, then press the SET key to adjust the temperature.
The unit operates on AC 100‑120 V.
The output power is 150 W.
