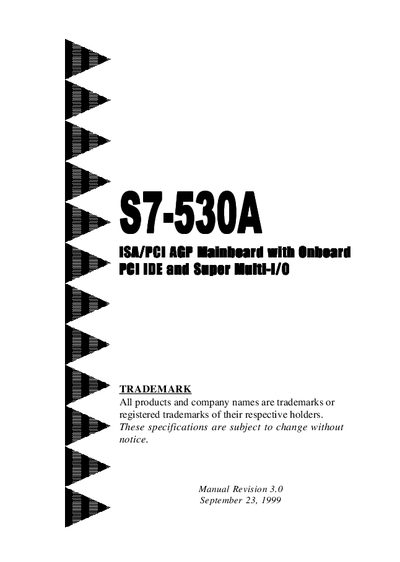

This manual introduces the features and functions of the S7-530A motherboard, including components checklist, overview, system block diagram, installation, BIOS setup and more.
This manual covers the S7-530A motherboard, detailing its components, power connections, and system block diagram. It includes a checklist of parts supplied with the board and an overview of its features such as Remote On/Off and Soft Off functions.
Installation instructions guide you through jumper configuration, memory setup, and connector placement. The BIOS section explains Award BIOS setup, power‑management options, and how to load default settings. Appendices provide memory maps, POST codes, and troubleshooting information.
| Power connector | 20‑pin ATX connector |
|---|---|
| Remote On/Off support | Supported via front‑panel connector |
| BIOS type | Award BIOS |
It loads the default data directly from ROM and initializes the associated hardware, useful when the CMOS data is corrupted or after a new board is installed.
The board uses a single 20‑pin ATX power connector.
