This document is about the Enfora Enabler III software development guide, which introduces how to use SDK to evaluate the Enabler III module and develop your own applications

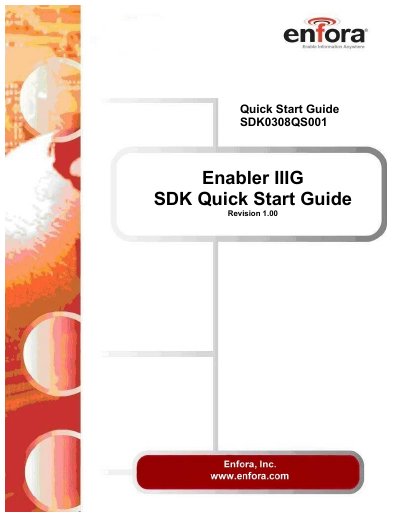

The Enfora SDK0308QS001 Enabler III Quick Start Guide provides a concise introduction to the development board, its connectors, switches, jumpers, and required hardware connections such as the GSM/GPRS antenna, DB‑9 serial port, power switches, and GPIO LEDs. It also describes the audio and RF connectors, debug headers, and power input specifications.
The guide walks users through configuring the Enfora module via a Windows PC using HyperTerminal, including detailed AT command examples for modem activation, network registration, and PDP context setup. It finishes with a parts list, optional accessories, and a schematic diagram reference.
| Power input connector size | 1.3 mm inner / 3.8 mm outer |
|---|---|
| Power supply input range | 4.5 V – 9 V (max) |
| RF connector type | SMA connector provided |
| Audio connector type | 4‑pole stereo headset (J700) plus separate speaker (J702) and microphone (J703) jacks |
Use switch SW200 to turn the modem power on from the power connectors J202 or P200.
Connect the SDK serial port to a PC and use HyperTerminal with the settings shown in the guide to send AT commands.
Use AT$VSELECT=0 for handset audio or AT$VSELECT=1 for headset audio.
