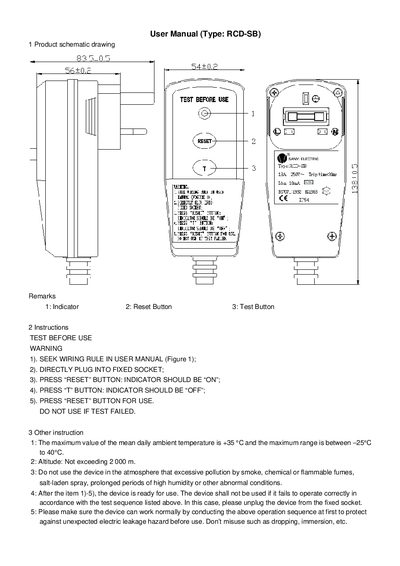

This document provides instructions for testing and using the RCD-SB model, including wiring rules and environmental conditions.
The manual provides step‑by‑step safety and test procedures for the RCD‑SB device. Before use, the user must follow the test sequence: press the Reset button (indicator should turn on), then press the Test button (indicator should turn off). If the device fails any test, it must be unplugged and not used.
Additional instructions cover environmental limits (ambient temperature +35 °C, range –25 °C to 40 °C, altitude up to 2000 m), wiring requirements (flexible cord BS 6500, conductor cross‑section limits), and what to do in case of electric leakage or repeated tripping, including contacting the manufacturer or a qualified electrician.
| Maximum conductor cross‑section and length | 3 mm² / 2 m |
|---|---|
| Minimum conductor cross‑section and length | 0.75 mm² / 2 m |
| Strip length | 26‑28 mm |
| Maximum ambient temperature | +35 °C |
| Ambient temperature operating range | -25 °C to 40 °C |
| Maximum operating altitude | 2000 m |
Seek advice from the manufacturer or a qualified electrician for a solution.
No. The device must not be used in atmospheres with excessive smoke, chemical or flammable fumes, salt‑laden spray, prolonged high humidity, or other abnormal conditions.
