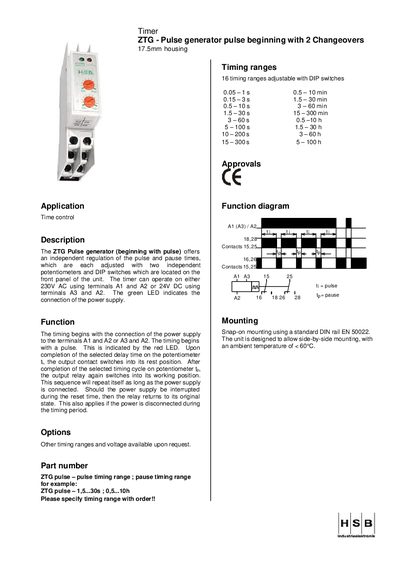

The ZTG Pulse generator offers independent regulation of the pulse and pause times, which are adjusted with two independent potentiometers and DIP switches located on the front panel. The timer can operate on either 230V AC or 24V DC. It has multiple timing ranges to meet various time control needs.
The ZTG pulse generator offers independent regulation of pulse and pause times via two potentiometers and DIP switches on the front panel. It can be powered from 230 V AC (terminals A1/A2) or 24 V DC (terminals A3/A2), with green and red LEDs indicating power and pulse status. The timing cycle repeats as long as power is present, and the relay returns to its original state if power is interrupted.
Technical data includes a 17.5 mm housing, DIN‑rail mounting, and a range of timing settings from 0.15 s to 300 s for pulses and up to 60 h for pauses. The unit features a 250 V AC switching voltage, 4 A maximum current, and a mechanical life of 30 million operations. It complies with CE approval and VDE standards, and is designed for ambient temperatures from –25 °C to +60 °C.
| Supply voltage (AC) | 230 V AC |
|---|---|
| Supply voltage (DC) | 24 V DC |
| Power consumption (DC) | ≈ 1.5 W |
| Power consumption (AC) | ≈ 6 VA |
| Drop‑off time | ≈ 20 ms |
| Dimensions (L×W×H) | 90 mm × 17.5 mm × 69.5 mm |
| Weight | 104 g |
It can operate on 230 V AC via terminals A1 and A2 or on 24 V DC via terminals A3 and A2.
Pulse time can be set from 0.15 s to 3 s, 1.5 s to 30 s, 15 s to 300 s, or 3 min to 60 min depending on the DIP switch setting.
