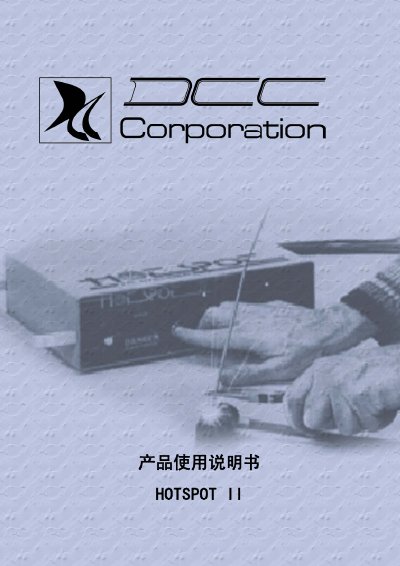

Hot Spot II Product User Manual, introduces the use of the product and precautions
The Hotspot II is a pulse high‑energy welding unit designed for wire and stud welding. It operates from AC power, provides adjustable energy levels, and includes safety features such as overload protection and a resettable circuit breaker.
The manual details warnings, control panel functions, specifications, application notes, and warranty information to help operators safely and effectively use the equipment. This manual is written in Chinese.
| Size | 3.5" H × 8.5" D × 11.5" W |
|---|---|
| Weight | 14 lb (6.3 kg) |
| Stored Weld Energy | 5 – 250 W·s |
| Weld Capability | Wire pairs up to #14 gauge; studs up to #8 |
| Power Supply | 120 V AC 60 Hz (220 V AC 50 Hz optional) |
| Maximum Output Power | ≈ 250 Joules |
The maximum output power is approximately 250 Joules.
It can weld wire pairs as heavy as #14 gauge (1.6 mm) or finer.
