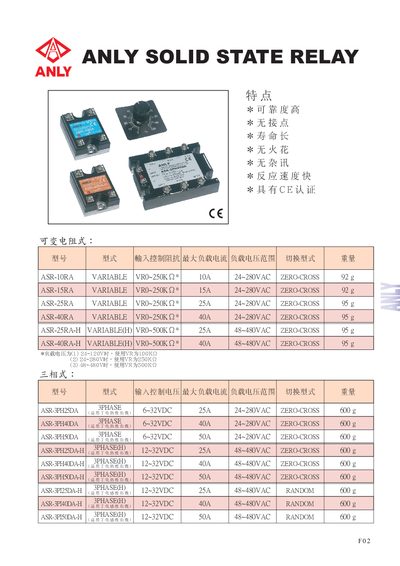

This document describes the features and characteristics of ANLY solid state relays.
The guide presents ANLY solid‑state relays, highlighting their high reliability, contact‑less operation, long life, spark‑free switching, low noise, fast response, and CE certification. Two families are covered: variable‑resistance type and three‑phase type, each with multiple current‑rated models.
Technical tables give the input control impedance, maximum load current, supported voltage ranges, switching mode, isolation impedance, dielectric strength, on‑state voltage drop, and timing characteristics. Contact details for ANLY offices worldwide are also provided. This manual is written in Chinese.
| Variable‑resistance relays – Switching type | Zero‑cross |
|---|---|
| Maximum on‑state voltage drop | 2.0 V rms |
| Isolation impedance | 10 GΩ |
| Maximum closing voltage | 10 VAC |
| Opening time | LESS 2 ms |
They use zero‑cross switching.
The isolation impedance is 10 GΩ.
The maximum on‑state voltage drop is 2.0 V rms.
