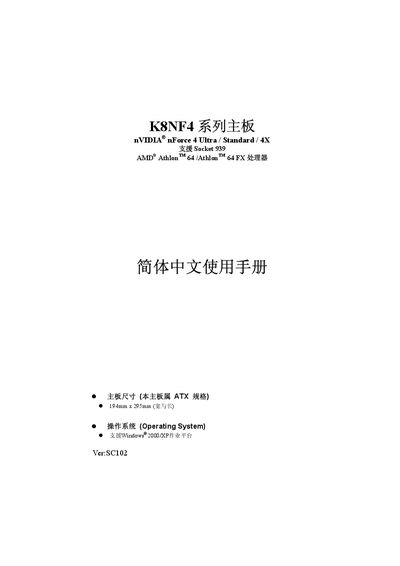

This document provides information about the specifications, installation requirements, configuration diagram, BIOS system settings, and software settings of the K8NF4 series motherboard.
This manual covers the K8NF4 series motherboard, detailing its ATX‑compliant layout, supported CPUs, memory types, and expansion slots. It includes safety instructions, connector descriptions, and wiring diagrams for power LED and other front‑panel connections.
The document also explains BIOS configuration, RAID setup (including RAID 0, 1, 0+1, and JBOD), and driver installation for audio, LAN, USB, and SATA interfaces. Troubleshooting tips and a parts list are provided for service technicians and end users. This manual is written in Chinese.
| CPU Socket | Socket 939 |
|---|---|
| Chipset | nVidia nForce 4 Ultra / Standard / 4X |
| Memory Type | DDR400/DDR333/DDR266 (unbuffered) |
| PCI‑Express Slots | 1 × PCI‑Express x16, 3 × PCI‑Express x1 |
| PCI Slots | 2 × PCI 32‑bit 33 MHz |
| SATA | SATA 1.0 (150 MB/s) and SATA 2.0 (300 MB/s) |
| RAID Support | RAID 0, 1, 0+1, JBOD |
The motherboard supports the Socket 939 CPU socket.
The board supports RAID 0, RAID 1, RAID 0+1, and JBOD modes.
