K8Utra-V series motherboard Simplified chinese Manual

K8Ultra-V series motherboard is based on VIA® K8T800 PRO/ VT8237 chipset, supports Socket 754 AMD® AthlonTM 64 processors, supports Windows® 98/ME/2000/XP operating system.

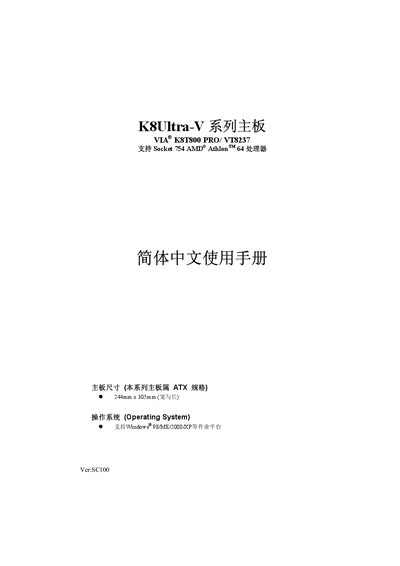

K8Utra-V series motherboard Simplified chinese Manual - cover page
Brand
K8Utra-V系列主板
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
61
File format
PDF
File size
7.4 MB
Published
06 April, 2012
Updated
30 September, 2023
MD5 checksum
8A4D3B0E6F4F3AA302F5044BF7E8891E
PDF
K8Utra-V series motherboard Simplified chinese Manual PDF

About this manual

The K8Ultra-V series motherboard manual provides step‑by‑step instructions for installing the CPU, memory, and expansion cards, as well as detailed information on BIOS configuration, power management, and peripheral connections. It also includes safety guidelines and troubleshooting tips for proper system assembly.

Key hardware features are described, such as support for Socket 754 AMD Athlon 64 processors, DDR400/333/266/200 memory up to 3 GB, AGP 2/4/8× slots, SATA 150 MB/s, up to eight USB 2.0 ports, and a 10/100/1000 Mbps LAN controller. This manual is written in Chinese.

What's inside

  • Hardware Installation
  • CPU Installation
  • Memory Installation
  • Front/Rear Panel Connectors
  • BIOS Settings
  • Power Management
  • Peripheral Interfaces
  • Troubleshooting

Specifications

CPU SocketSocket 754
Supported CPUAMD Athlon 64
ChipsetVIA KSTS00 PRO / VT8237
SATA InterfaceSATA 150 MB/s, RAID 0/1 support
USB PortsUp to 8 × USB 1.1/2.0

Frequently asked questions

What CPU socket does the K8Ultra-V motherboard use?

It uses a Socket 754 compatible with AMD Athlon 64 processors.

How many USB ports are available on the motherboard?

The motherboard provides up to eight USB 1.1/2.0 ports.
