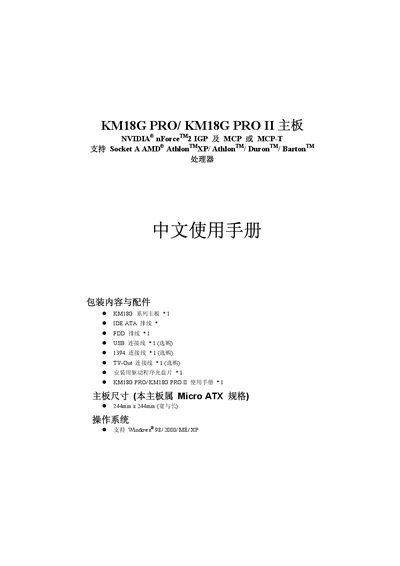

KM18G PRO/ KM18G PRO II motherboard adopts NVIDIA® nForceTM2 IGP and MCP or MCP-T chipset, supports Socket A AMD® AthlonTMXP/ AthlonTM/ DuronTM/ BartonTM processors.
This manual provides detailed information for the KM18G PRO and KM18G PRO II motherboards. It includes an overview of the board layout, supported processors, memory configurations, and built‑in features such as USB, IEEE‑1394, LAN, and audio.
Installation instructions cover connecting power, attaching the CPU, memory modules, expansion cards, and peripheral connectors. The BIOS setup, power‑management options, and TV‑Out configuration for dual‑screen operation are described step‑by‑step, with screenshots for Windows 98/ME/2000/XP. This manual is written in Chinese.
| CPU socket | Socket A |
|---|---|
| Supported processors | AMD Athlon XP, Athlon, Duron, Barton |
| Front side bus | 200/266/333 MHz |
| Memory slots | 3 DDR DIMM slots (dual‑channel) |
| Maximum memory | 3 GB (unbuffered DDR333/266) |
| USB ports | Up to 6 USB 2.0 ports |
| IEEE‑1394 ports | 2 ports (KM18G PRO II) |
| LAN | 10/100 Mbps Ethernet (ICS1893AF PHY) |
| Audio codec | AC'97 ALC650 (6‑channel) |
| PCI slots | 3 × 32‑bit PCI 2.2 |
The board supports Socket A AMD processors such as Athlon XP, Athlon, Duron and Barton models.
It can install up to three DDR modules for a total of 3 GB of unbuffered DDR333/266 memory.
