The K8M800-754 motherboard is a motherboard that supports Socket 754 AMD Athlon 64 processors. It has ATX specification and supports operating systems such as Windows 2000/XP. The motherboard is equipped with VIA K8M800/VT8237 chipset, providing DDR SDRAM slots, AGP display card slots, PCI slots, Ultra ATA and Serial ATA functionality, as well as 3D graphics accelerator and AC'97 Codec audio chip.
The K8M800-754 is an ATX motherboard built around the VIA KSMS00 and VTS237 chipsets. It supports Socket 754 AMD Athlon 64 CPUs, up to 2 GB of DDR400/333/266 memory, an AGP 2.0/3.0 slot, three PCI 2.3 slots, dual IDE, dual SATA, and up to eight USB 2.0 ports. Integrated features include a Realtek ALC655 AC'97 audio codec with 5.1‑channel support and a Realtek RTLS100C LAN controller.

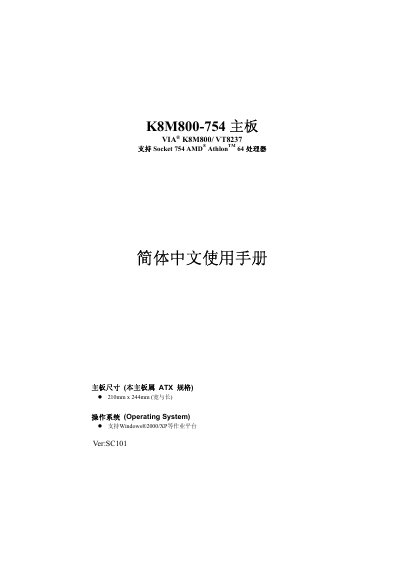

This manual covers safety precautions, package contents, connector descriptions, BIOS setup, RAID configuration, audio setup, and detailed hardware specifications. It is intended for end users installing and configuring the motherboard. This manual is written in Chinese.
| CPU socket | Socket 754 |
|---|---|
| Supported CPUs | AMD Athlon 64 |
| Memory type | DDR400/DDR333/DDR266 (PC3200/PC2700/PC2100) |
| Maximum memory capacity | 2 GB |
| AGP slot | AGP 2.0/3.0, 4×/8× |
| PCI slots | 3 × 32‑bit PCI 2.3 |
| IDE ports | 2 × IDE, ATA33/66/100/133 |
| SATA ports | 2 × SATA100, 150 MB/s |
| USB ports | Up to 8 × USB 2.0 |
It supports up to eight USB 2.0 ports.
Yes, it supports SATA RAID 0 (striped) and RAID 1 (mirrored) modes.
It uses a Socket 754 compatible with AMD Athlon 64 processors.
