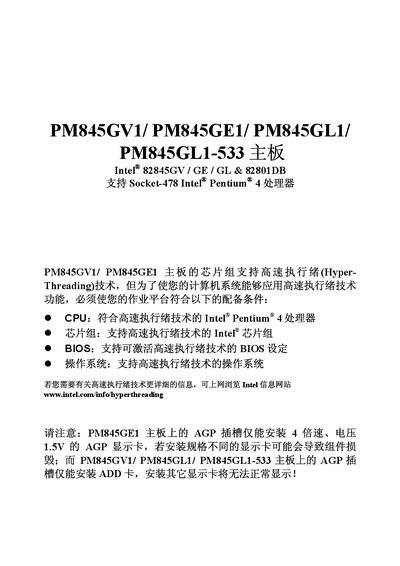

The PM845GV1/ PM845GE1/ PM845GL1/ PM845GL1-533 motherboard is a Micro-ATX motherboard that supports the latest Socket 478 Intel® Pentium® 4 processors.
This manual introduces the PM845GV1, PM845GE1, PM845GL1 and PM845GL1-533 Micro‑ATX motherboards, which integrate PCI, IDE, USB and LAN interfaces and support Socket‑478 Intel Pentium 4 processors. It details the board’s chipset, graphics controller, memory limits, AGP/PCI slots, and power‑management features.
The guide provides step‑by‑step BIOS configuration, software installation instructions, and a troubleshooting section that addresses common error messages such as “SECTOR NOT FOUND”, “Invalid Configuration”, and display issues. This manual is written in Chinese.
| CPU Socket | Socket‑478 for Intel Pentium 4 |
|---|---|
| Chipset (Northbridge) | Intel 82845GV / 82845GE / 82845GL |
| Chipset (Southbridge) | Intel 82801DB (ICH4) |
| Front‑Side Bus Speed | 400 MHz (PM845GV1/GE1/GL1‑533), 533 MHz (PM845GL1‑533) |
| Memory Support | Up to 2 GB DDR SDRAM (PC1600/PC2100/PC2700), unbuffered, non‑ECC |
| AGP Slot | AGP 2.0, 1.5 V, 4× speed (PM845GE1) or ADD card only (other models) |
| LAN | Integrated 10/100 Mbps Ethernet (Intel DA82562ET) |
| Dimensions | 200 mm × 244 mm (Micro‑ATX) |
Check all installed hardware and verify that the BIOS settings are correct for the components.
