PX865PE7 Series motherboard is built on Intel® 82865PE and ICH5 chipset combination, supports Intel® Pentium® 4 front-side bus to 533/ 800 MHz. PX865PE7 Series motherboard provides 4 sockets for 184-pin unbuffered and non-ECC DDR memory modules, supporting up to 4GB of memory.

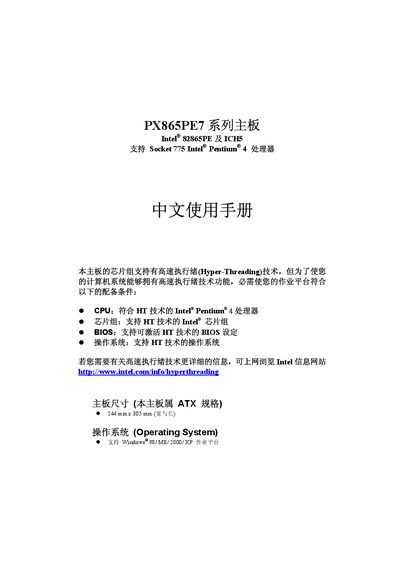

This manual covers the PX865PE7 series motherboard, which uses the Intel 82865PE chipset and ICH5 southbridge. It supports Intel Pentium 4 processors with Socket 775, Hyper‑Threading, and front‑side bus speeds of 533 MHz or 800 MHz. The board follows the ATX form factor (244 mm × 305 mm) and is compatible with Windows 98/ME/2000/XP.
Key sections describe hardware installation, BIOS configuration, memory installation, and the use of integrated components such as the AC'97 audio codec, USB 2.0 ports, SATA and IDE interfaces, and the onboard Marvell Gigabit Ethernet controller. This manual is written in Chinese.
| CPU Socket | Socket 775, Intel Pentium 4 |
|---|---|
| Chipset | Intel 82865PE (northbridge) / ICH5 (southbridge) |
| AGP Slot | 1 × AGP 3.0, 0.8 V/1.5 V |
| PCI Slots | 5 × 32‑bit PCI 2.3 |
| SATA Ports | 2 × Serial ATA 150 |
| BIOS | Phoenix‑Award™ BIOS with APM1.2 and ACPI |
It supports Intel Pentium 4 processors with Socket 775 and Hyper‑Threading, using front‑side bus speeds of 533 MHz or 800 MHz.
Yes, it includes two Serial ATA 150 ports for SATA devices.
