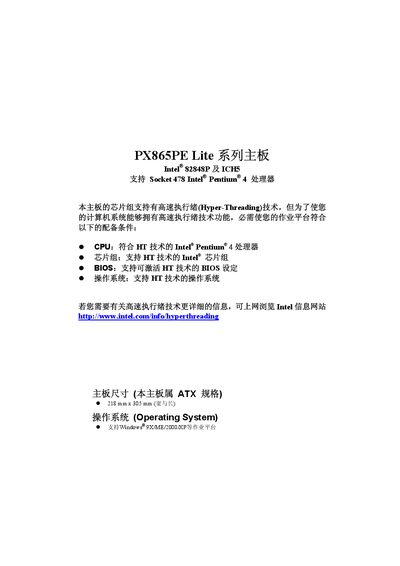

The PX865PE Lite series motherboard is a motherboard that supports Socket 478 Intel Pentium 4 processors. Its chipset supports Hyper-Threading technology and requires a compatible HT processor, chipset, BIOS, and operating system. The motherboard has an ATX form factor and supports operating systems such as Windows 9X/ME/2000/XP.
This manual covers the PX865PE Lite series motherboard, an ATX‑form factor board built around the Intel 82848SP and ICH5 chipsets. It lists supported CPUs, memory modules, expansion slots, and peripheral interfaces, and explains the required BIOS settings for proper operation.
The document includes safety precautions, a parts list, wiring diagrams, and detailed instructions for installing memory, IDE/SATA drives, AGP cards, and configuring the BIOS for features such as Hyper‑Threading, USB, and power management. This manual is written in Chinese.
| Chipset | Intel 82848SP / ICH5 |
|---|---|
| SATA Ports | 2 × SATA1.0 (Serial ATA 150) |
