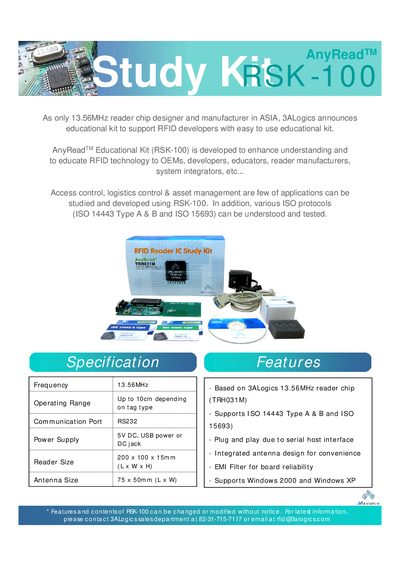

This PDF document introduces the AnyReadTM Educational Kit (RSK-100) from 3ALogics. The educational kit is developed to support RFID developers and enhance understanding of RFID technology. It supports various ISO protocols such as ISO 14443 Type A & B and ISO 15693, and can be used for studying and developing applications like access control, logistics control, and asset management.
The AnyRead™ RSK-100 Educational Kit is designed to help RFID developers, OEMs, educators and system integrators learn and test 13.56 MHz RFID technology. It provides a ready‑to‑use platform for studying access control, logistics and asset‑management applications.
Key features include a 13.56 MHz reader chip, plug‑and‑play serial (RS232) interface, support for ISO 14443 Type A & B and ISO 15693 protocols, up to 10 cm read range, and flexible power options (5 V DC, USB or DC jack). The compact board measures 200 × 100 × 15 mm with an integrated 75 × 50 mm antenna.
| Frequency | 13.56 MHz |
|---|---|
| Operating range | Up to 10 cm depending on tag type |
| Communication port | RS232 (serial host interface) |
| Power supply | 5 V DC, USB power or DC jack |
| Reader size | 200 × 100 × 15 mm |
| Antenna size | 75 × 50 mm |
The kit can read up to about 10 cm, depending on the tag type.
It can be powered by 5 V DC, USB power, or a DC jack.
