GA-8I945GMF Intel Pentium D Pentium 4 LGA775 CPU system board Manual

GA-8I945GMF is a motherboard produced by GIGA-BYTE TECHNOLOGY CO., LTD., supporting Intel® Pentium® D / Pentium® 4 LGA775 processors.

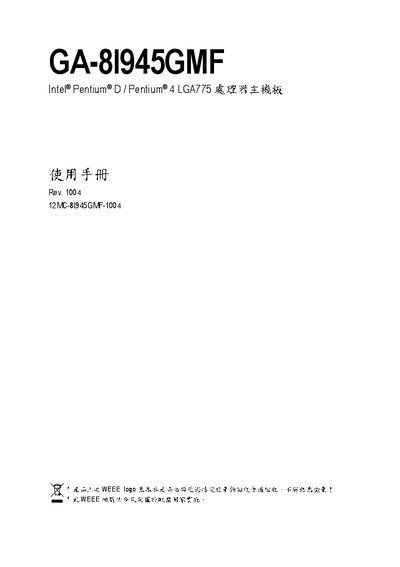

GA-8I945GMF Intel Pentium D Pentium 4 LGA775 CPU system board Manual - cover page
Brand
GA-8I945GMF
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
80
File format
PDF
File size
9.2 MB
Published
06 April, 2012
Updated
30 September, 2023
MD5 checksum
9F6A3267493F1F9BEAFE8AEE7D02BFCE
PDF
GA-8I945GMF Intel Pentium D Pentium 4 LGA775 CPU system board Manual PDF

About this manual

This manual guides users through installing and configuring the Gigabyte GA-8I945GMF motherboard. It covers safety notices, hardware installation steps, BIOS configuration, driver installation, and troubleshooting procedures.

The document also lists regulatory certifications, technical specifications such as CPU socket type, supported memory, and expansion slots, and provides contact information for global technical support. This manual is written in Chinese.

What's inside

  • Hardware Installation
  • Pre‑Installation Notes
  • Product Specifications
  • CPU Installation
  • Heatsink Installation
  • Memory Module Installation
  • Interface Card Installation
  • BIOS Settings
  • Driver Installation
  • Troubleshooting

Specifications

CPU socketLGA775
Supported memoryDDRII 667/1333/400 MHz DIMM
PCI Express slotsx16 and x1
PCI Express x1 slotPresent

Frequently asked questions

What CPU front‑side bus speed is recommended for this motherboard?

Use CPUs with an FSB of 800 MHz or 1066 MHz.
