GA-8I945PMF Intel Pentium D Pentium 4 LGA775 CPU system board Manual

GA-8I945PMF is a motherboard released by GIGA-BYTE TECHNOLOGY CO., LTD. It uses Intel 945P chipset, supports Intel Core2 Duo processors, supports DDR2 667 memory, supports SATAII interface, supports IEEE1394 interface

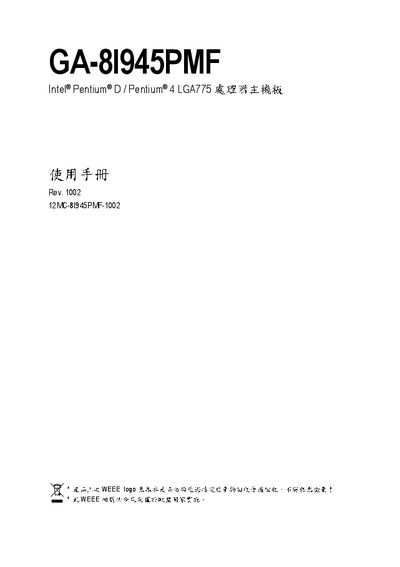

GA-8I945PMF Intel Pentium D Pentium 4 LGA775 CPU system board Manual - cover page
Brand
GA-8I945PMF
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
80
File format
PDF
File size
8.5 MB
Published
06 April, 2012
Updated
30 September, 2023
MD5 checksum
9A0AA42D380637B05A79520CEF2AA4D1
PDF
GA-8I945PMF Intel Pentium D Pentium 4 LGA775 CPU system board Manual PDF

About this manual

The Gigabyte GA-8I945PMF motherboard manual provides step‑by‑step instructions for hardware installation, including CPU, heatsink, memory modules, and expansion cards. It also details BIOS configuration, power management, and troubleshooting procedures.

Additional sections cover driver installation, utility tools such as EasyTune 5 and Xpress Recovery, and contact information for Gigabyte technical support worldwide. This manual is written in Chinese.

What's inside

  • Hardware Installation
  • Pre‑Installation Precautions
  • Product Specifications
  • CPU Installation
  • Heatsink Installation
  • Memory Module Installation
  • Expansion Card Installation
  • Rear Port Introduction
  • BIOS Settings
  • Driver Installation

Specifications

CPU SocketLGA775
ChipsetIntel 945P
PCI Express Slotsx16 and x1

Frequently asked questions

What CPU socket does the GA-8I945PMF motherboard support?

It supports the LGA775 socket for Intel Pentium D and Pentium 4 processors.

Which chipset is used on the GA-8I945PMF motherboard?

The board uses the Intel 945P chipset.

How many PCI Express slots are available on this motherboard?

There is one PCI Express x16 slot and one PCI Express x1 slot.
