Gigabyte GA-8I865GVME Motherboard User Manual

This document describes the technical specifications and features of the GA-8I865GVME motherboard, including supported processor types, memory types and frequencies, interfaces, and slots.

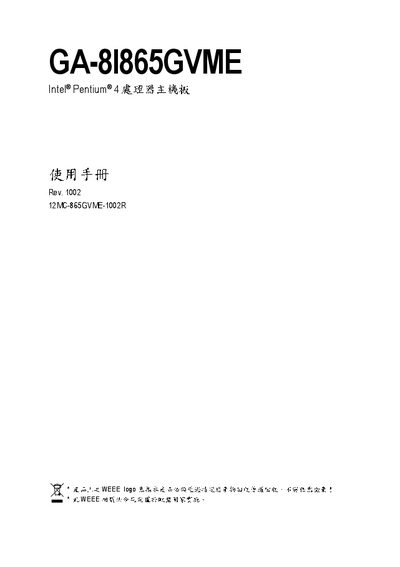

Gigabyte GA-8I865GVME Motherboard User Manual - cover page
Brand
GA-8I865GVME
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
72
File format
PDF
File size
7.7 MB
Published
06 April, 2012
Updated
29 September, 2023
MD5 checksum
67A047DA1B7E2E0CF2EB5926DB35EE4D
PDF
Gigabyte GA-8I865GVME Motherboard User Manual PDF

About this manual

This manual guides users through the installation and setup of the GA-8I865GVME motherboard, covering hardware layout, connector identification, and safety precautions. It also details BIOS configuration options, driver installation procedures, and common troubleshooting steps.

The document includes a hardware diagram, step‑by‑step installation instructions, BIOS feature descriptions, and contact information for Gigabyte technical support worldwide. This manual is written in Chinese.

What's inside

  • Hardware Layout
  • Installation Guide
  • BIOS Configuration
  • Driver Installation
  • Troubleshooting
  • Safety and Compliance
  • Specifications

Specifications

CPU SocketSocket 478
Supported CPUIntel Pentium 4
Memory TypeDDR 400/333/266 MHz DIMM
USB Ports8
IDE Channels2

Frequently asked questions

What type of CPU does the GA-8I865GVME motherboard support?

It supports Intel Pentium 4 processors using a Socket 478.

How many USB ports are available on the GA-8I865GVME motherboard?

The board provides eight USB ports.

What memory types are compatible with this motherboard?

It accepts DDR DIMM modules at 400 MHz, 333 MHz, or 266 MHz.

Where can I obtain technical support for the GA-8I865GVME motherboard?

Technical support is available through Gigabyte’s global service websites listed in the manual.
