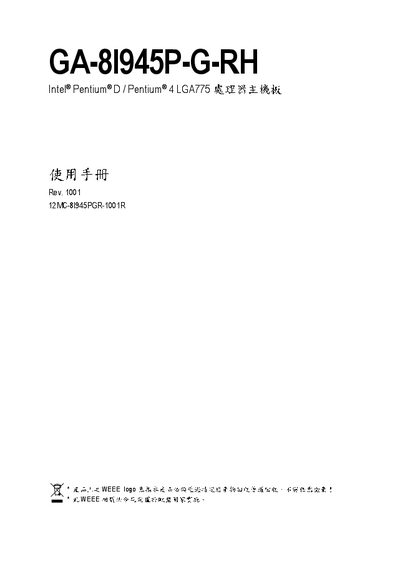

GA-8I945P-G-RH is a motherboard from Gigabyte that supports Intel Pentium D/Pentium 4 processors and uses the LGA775 socket. It supports up to 8GB of DDR2 667 memory.
This manual guides users through the installation of the GA-8I945P-G-RH motherboard, including CPU, memory, expansion cards, and cable connections. Detailed BIOS setup sections cover standard CMOS features, advanced options, power management, and security settings.
The document also contains regulatory compliance statements (FCC, CE) and extensive contact information for Gigabyte technical support worldwide, with links to regional support websites and phone numbers. This manual is written in Chinese.
| CPU socket | LGA775 |
|---|---|
| Chipset | Intel 945P |
| Memory type | DDRII 667/1333/400MHz DIMM |
| Memory configuration | Dual Channel |
| PCI Express slots | x16 and x1 |
| IDE ports | IDE1 and IDE2 |
| SATA interface | 3 Gb/s |
| USB ports | USB 2.0 (33 MHz) |
It uses an LGA775 socket.
The motherboard is built around the Intel 945P chipset.
It supports DDRII DIMM modules at 667, 1333, or 400 MHz in dual‑channel mode.
