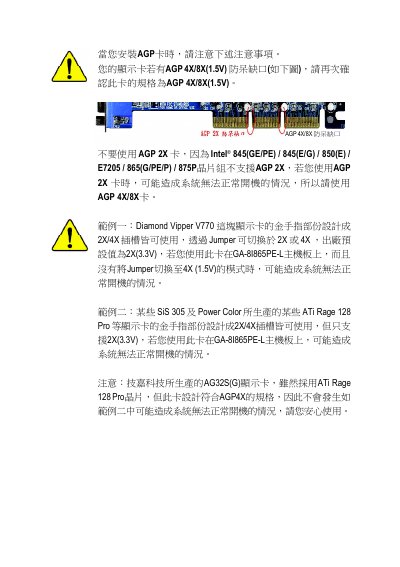

This document describes the installation of AGP card on GA-8I865PE-L motherboard, including AGP card specification, usage of AGP 4X/8X(1.5V) card, jumper setting and so on.
This manual provides step‑by‑step instructions for installing the GA‑8I865PE‑L motherboard, including CPU, memory, expansion cards, and all required cables. It also covers safety precautions, static‑discharge protection, and proper mounting in the chassis.
Additional sections describe BIOS configuration, power‑saving features, built‑in peripherals such as audio, networking, and USB, as well as technical reference data and warranty information. This manual is written in Chinese.
| Form factor | ATX 30.5 cm × 23.0 cm |
|---|---|
| CPU socket | Socket 478, supports Intel Pentium 4 (Northwood, Prescott, HT) |
| Chipset | Intel 865PE |
| I/O controller | ICH5 |
| Supported memory types | DDR400/DDR333/DDR266, unbuffered 128 MB‑1 GB modules |
| AGP slot | 1 × AGP 8X/4X |
| PCI slots | 5 × PCI 33 MHz, PCI 2.3 compliant |
| IDE ports | 2 × IDE (UDMA 33/ATA 66/ATA 100) |
| SATA ports | 2 × SATA (150 MB/s) |
| USB ports | 8 × USB 2.0/1.1 (4 rear, 4 front) |
| Network controller | Kinneret‑R 10/100 Mbit Ethernet |
It uses a Socket 478 that supports Intel Pentium 4 processors, including Northwood, Prescott and HT versions.
The board provides eight USB ports (four rear and four front), supporting USB 2.0 and 1.1.
The single AGP slot supports both AGP 8X and AGP 4X modes.
