Gemen Technology GMI845E/845PE Series Motherboard User Manual

GMI845E/845PE series mainboard user manual introduces packaging instructions, system mainboard introduction, motherboard block diagram and I/O interface and other content.

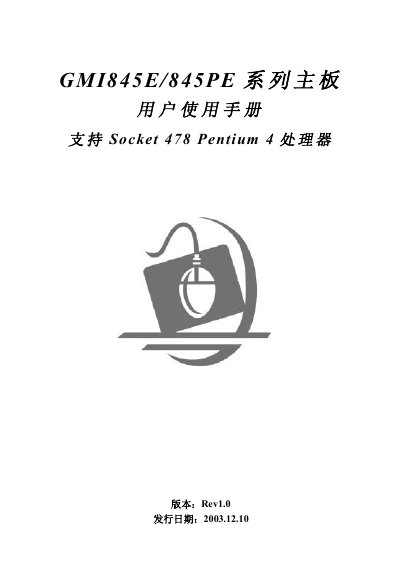

Gemen Technology GMI845E/845PE Series Motherboard User Manual - cover page
Brand
GMI845E/845P
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
75
File format
PDF
File size
1.2 MB
Published
06 April, 2012
Updated
30 September, 2023
MD5 checksum
F53DFBE963F18FC62468BAFE5DB17186
PDF
Gemen Technology GMI845E/845PE Series Motherboard User Manual PDF

About this manual

The GMI845E/845PE series motherboards are ATX/M‑ATX platforms built around Intel 82845/E+ or 82845PE+ northbridge and Intel 82801BA/DB southbridge chipsets. They support Socket 478 Pentium 4 CPUs, DDR266/333/400 memory, integrated AC97 audio, optional LAN and multiple USB ports.

The manual covers safety notices, packaging contents, motherboard diagrams, installation steps, BIOS configuration, driver installation, and troubleshooting. It also includes a feedback form for customers to report issues to Gemen Technology. This manual is written in Chinese.

What's inside

  • Packaging
  • System Motherboard Overview
  • Motherboard Diagram and I/O Interface
  • Installation and Setup
  • BIOS Menu Functions
  • Driver Installation
  • Audio System Application
  • Appendix
  • Customer Feedback Form

Specifications

Chipset (GMI845D/E-C)Intel 82845/E+ + Intel 82801BA
FSB Speed400 MHz / 533 MHz
Onboard LAN (GMI845EM-N)Yes, 10/100 Mbps
USB Ports (GMI845PE800)6 × USB 2.0

Frequently asked questions

Which CPU socket is supported by the GMI845E/845PE series?

The series supports Socket 478 Pentium 4 processors.

How many USB 2.0 ports does the GMI845PE800 model provide?

It provides six USB 2.0 ports.

What chipset is used on the GMI845E-P model?

It uses the Intel 82845E+ northbridge with Intel 82801DB southbridge.
