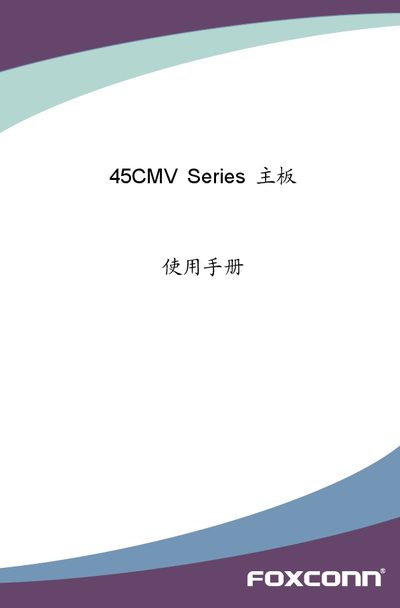

This document is the user manual for the 45CMV series motherboard, which introduces the environmental characteristics and the content of harmful substances in the motherboard. It also provides usage precautions and product declarations.
This manual covers safety precautions, ESD protection, and proper power handling for the Foxconn 45CMV/45CMV‑K motherboard. It also lists environmental compliance markings and legal notices.
The document details hardware installation (CPU, memory, expansion cards), BIOS setup, advanced BIOS features, power‑management settings, and utility programs such as FOX LOGO for boot‑logo customization and FOX DMI for system diagnostics. This manual is written in Chinese.
| Model | 45CMV/45CMV-K |
|---|---|
| Part Number | 3A220QW00-000-G |
| EMC Standard | EN 55022:1998/A2:2003 |
| Input Current Limit | ≤ 16 A per phase |
| FCC Classification | Class B Subassembly |
Disconnect the power, wear an ESD wrist strap, and avoid touching metal contacts or connectors.
Use the FOX LOGO program to select a 1024×768 JPG image and enable "Full Screen Logo Show" in the BIOS.
It complies with EN 55022, EN 61000‑3‑2, EN 61000‑3‑3, EN 55024, and FCC Part 15 Class B requirements.
Enter the BIOS program during system start‑up and navigate the menus for system information and settings.
