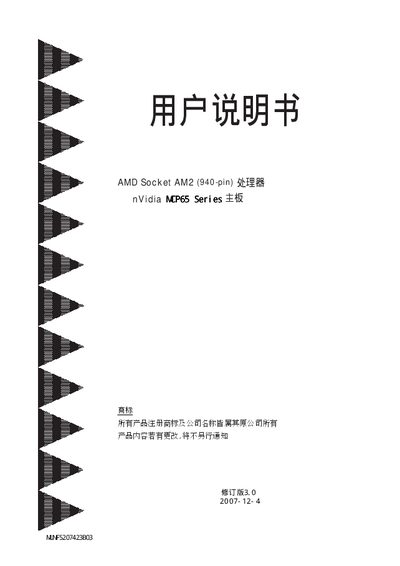

This is the user manual for the MCP65 series of Pangzhen Superpan boards. It provides detailed information on the features and usage of the main board.
This manual introduces the Nvidia MCP65 Series motherboard, detailing its hardware layout, supported CPUs, memory types, and integrated peripherals such as USB, Ethernet, and audio. It also describes the chipset features, BIOS options, and power management functions.
The document includes step‑by‑step installation instructions, BIOS configuration guidance, common troubleshooting procedures, and warranty information for the MCP65 Series motherboard. This manual is written in Chinese.
| CPU Socket | Socket AM2 (940‑pin) |
|---|---|
| Supported CPUs | AMD Athlon‑X2, Athlon‑647, Sempron |
| Memory Type | DDR2 SDRAM DIMM (1.8 V, 533/667/800, dual‑channel) |
| Maximum Memory Capacity | 16 GB |
| USB Ports | 10 × USB 2.0 (6 rear) |
| Audio | 6‑ or 8‑channel audio (Realtek ALCxxx codec) |
| LPC Controller | FIT F71883FG |
It uses a Socket AM2 (940‑pin) compatible with AMD Athlon‑X2, Athlon‑647 and Sempron processors.
The motherboard provides ten USB 2.0 ports, with six of them located on the rear panel.
The board can accommodate up to 16 GB of DDR2 memory.
