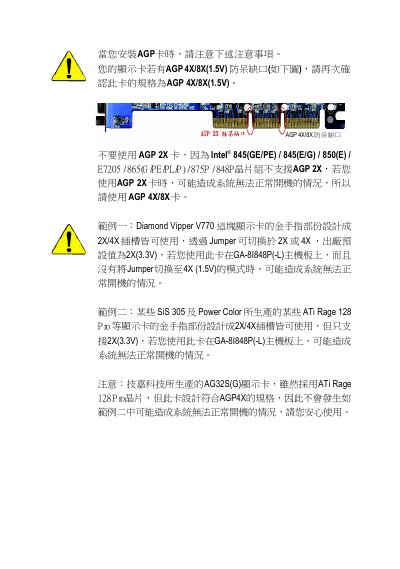

This manual is the user manual for GA-8I848P(-L) motherboard. It introduces the use methods, installation steps and precautions of the motherboard.
This manual covers the GA-8I848P(-L) motherboard, detailing its layout, BIOS settings, and hardware interfaces. It includes sections on CPU installation, memory configuration, expansion slots, and peripheral connections.
The document also contains compliance declarations, warranty information, and contact details for Gigabyte support worldwide. It is written in Chinese and spans 96 pages of technical guidance.
| CPU socket | Socket 478 |
|---|---|
| Supported CPUs | Intel Pentium 4 (Northwood, Prescott) with HT |
| Chipset | Intel 865PE/848P |
| Memory type | DDR400 / DDR333 / DDR266 DIMM |
| AGP slot | 8X/4X |
| PCI slots | 33 MHz PCI |
| SATA ports | 2 Serial ATA |
| USB ports | USB 2.0 / 1.1 |
| Audio codec | Realtek ALC655 |
It uses a Socket 478 for Intel Pentium 4 processors.
The board supports DDR400, DDR333, and DDR266 DIMM modules.
Two Serial ATA ports are provided for storage devices.
It uses the Realtek ALC655 audio codec.
