GA-8ID533 P3 Titans SDRAM system board chinese installation Manual

GA-8ID533 motherboard supports AGP 4X(1.5V) card but not AGP 2X(3.3V) card. If you use AGP 2X(3.3V) card, it may burn the mainboard components.

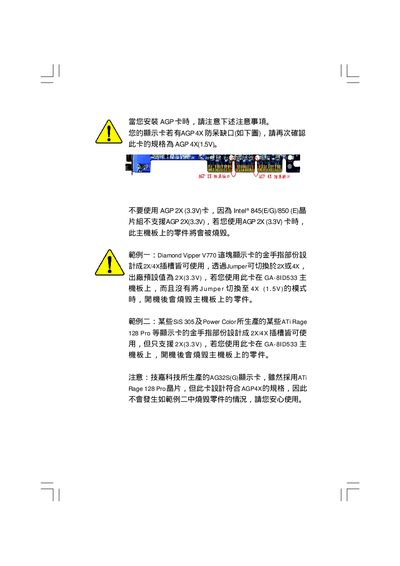

GA-8ID533 P3 Titans SDRAM system board chinese installation Manual - cover page
Brand
GA-8ID533
Category
Motherboard
Document type
Installation Guide
Language
Chinese
Pages
96
File format
PDF
File size
4.5 MB
Published
05 April, 2012
Updated
01 October, 2023
MD5 checksum
A083FD31BFC1BFFEE5D93573EB4AD428
PDF
GA-8ID533 P3 Titans SDRAM system board chinese installation Manual PDF

About this manual

This manual provides step‑by‑step instructions for installing the GA‑8ID533 motherboard. It includes CPU and heatsink mounting, memory module installation, connector wiring, rear I/O description, and jumper configuration for AGP slot settings.

Safety notes emphasize the use of anti‑static wrist straps, handling components in anti‑static bags, and careful routing of screws to avoid shorting PCB traces. The guide also details BIOS configuration, power‑saving options, and PCL settings. This manual is written in Chinese.

What's inside

  • Introduction
  • Installation Steps
  • CPU Installation
  • CPU Heatsink Installation
  • Memory Module Installation
  • Interface Installation
  • Rear I/O Introduction
  • Jumper Settings
  • BIOS Configuration
  • Power Saving Settings

Specifications

AGP Slot4X (1.5V)
CPU SocketPentium 4

Frequently asked questions

How do I switch the AGP slot between 2X and 4X modes?

Use the jumper on the motherboard; the default is 2X (3.3V) and moving the jumper to the 4X position selects 1.5 V operation.

Where can I find information about the rear I/O connectors?

The rear I/O connectors are described in the section titled "後方 VO 置挫介紹" (Rear I/O Introduction) within Chapter 2.
