GA-8IE2004 seriesP4 Titans DDR main-board chinese installation Manual

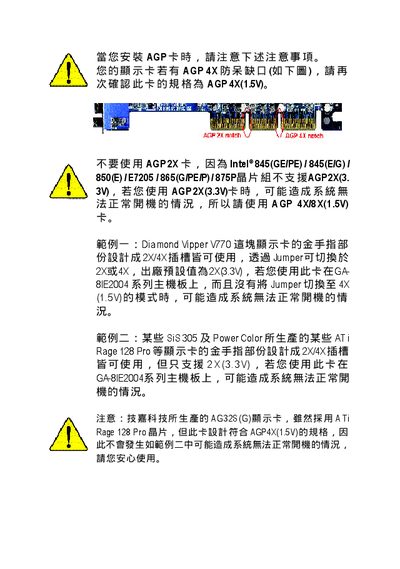

This document provides instructions on installing AGP cards, with a focus on the differences and compatibility issues between AGP 4X and AGP 2X. It also mentions specific examples and precautions.

GA-8IE2004 seriesP4 Titans DDR main-board chinese installation Manual - cover page
Brand
GA-8IE2004系列P4
Category
Motherboard
Document type
Installation Guide
Language
Chinese
Pages
96
File format
PDF
File size
5 MB
Published
05 April, 2012
Updated
28 September, 2023
MD5 checksum
3987DBB33E87BEC895B0309662839CC1
PDF
GA-8IE2004 seriesP4 Titans DDR main-board chinese installation Manual PDF

About this manual

The Gigabyte GA-8IE2004 motherboard manual provides detailed installation instructions, BIOS configuration steps, and hardware layout diagrams. It covers CPU socket details, memory modules, AGP/PCI slots, and I/O connectors, helping users assemble and configure the system correctly.

Additional sections include compliance declarations, audio and network setup, and troubleshooting tips. The document also lists technical specifications such as supported processors, chipset, memory type, and peripheral interfaces. This manual is written in Chinese.

What's inside

  • Declaration of Conformity
  • Motherboard Layout
  • CPU Installation
  • Memory Installation
  • AGP and PCI Configuration
  • I/O Ports Overview
  • Audio and Network Setup
  • BIOS Settings
  • Troubleshooting

Specifications

CPU SocketSocket 478
Supported CPUIntel® Pentium 4 (Northwood, 0.13 µm)
ChipsetIntel® 845E
Memory TypeDDR DIMM PC2100/PC1600
IDE Ports2 × IDE bus master (UDMA 33/ATA 66/ATA 100)
Audio CodecRealTek ALC655
