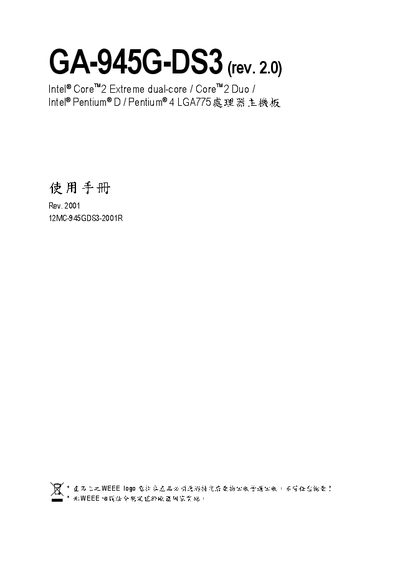

Gigabyte GA-945G-DS3 (rev. 2.0) is a motherboard based on the Intel 945G chipset. It supports Intel Core 2 Extreme dual-core/Core 2 Duo/Pentium D/Pentium 4 processors. The motherboard uses an 8-layer PCB board, supports dual-channel DDR2 memory, and supports up to 4GB DDR2 800 memory.
The GA-945G-DS3 is a LGA775 motherboard that supports Intel Core 2 Extreme, Core 2 Duo, Pentium D and Pentium 4 processors. It features the Intel 945G chipset, DDR2 memory up to 667 MHz, PCI Express x16, SATA 3 Gb/s, USB 2.0, and integrated audio and LAN controllers.
The manual covers safety and regulatory declarations, detailed BIOS setup options, hardware connector descriptions, and troubleshooting guidance. Sections include Standard CMOS Features, Advanced BIOS Features, Integrated Peripherals, Power Management, and utilities such as EasyTune and Xpress Recovery.
| CPU Socket | LGA775 |
|---|---|
| Supported CPUs | Intel Core 2 Extreme, Core 2 Duo, Pentium D, Pentium 4 |
| Chipset | Intel 945G |
| Memory Type | DDR2 DIMM 667/533/400 MHz |
| PCI Express Slots | PCI Express x16 |
| SATA Interface | SATA 3 Gb/s |
| USB Ports | USB 2.0 |
| LAN Controller | Realtek RTL8111B |
| Audio Codec | Intel 9456 |
| Front Side Bus | 800/1066 MHz |
It supports Intel Core 2 Extreme, Core 2 Duo, Pentium D and Pentium 4 processors on an LGA775 socket.
The model number is GA-945G-DS3 (rev. 2.0).
It uses DDR2 DIMM modules running at 667 MHz, 533 MHz or 400 MHz.
