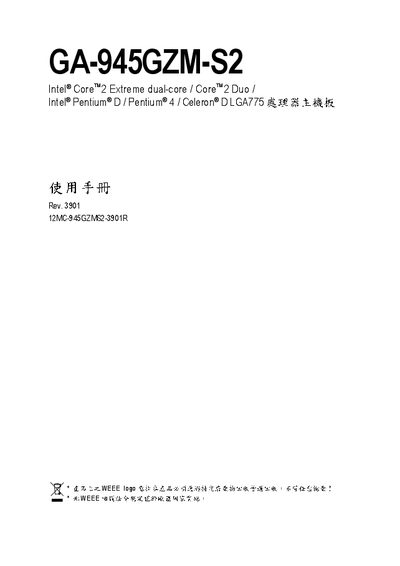

This document describes the features and characteristics of the GA-945GZM-S2 motherboard, including supported processor types (Intel® Core TM 2 Extreme dual-core / Core TM 2 Duo / Intel® Pentium® D / Pentium® 4 / Celeron® D LGA775), release date, BIOS settings, power management, and motherboard interfaces.
This manual guides users through installing the GA-945GZM-S2 motherboard, including CPU and heatsink mounting, connector and slot installation, and driver setup. It also covers BIOS configuration options such as Standard CMOS Features, Advanced BIOS Features, and Power Management settings.
Additional sections detail the accessories supplied with the board, safety and regulatory declarations (FCC, CE, RoHS), and troubleshooting tips. Contact information for Gigabyte support offices worldwide is also provided. This manual is written in Chinese.
| CPU Socket | LGA775 |
|---|---|
| Memory Type | DDRII 533/400 MHz DIMM |
| PCI Express Slots | PCI Express x4 |
| SATA Interface | SATA 3Gb/s |
| CPU Clock Frequency | ±200‑133 MHz |
It is classified as a Class B Digital Device under FCC Part 15.
The package includes one IDE cable, one floppy‑drive cable, two SATA 3 Gb/s cables, and various expansion‑slot brackets.
