GA-945PLM-S2 Intel Core 2 Extreme dual-core Core 2 Duo Intel Pentium D Pentium 4 Celeron D LGA775 CPU system board Manual

GA-945PLM-S2 is a motherboard from GIGA-BYTE. It supports Intel® Core TM 2 Extreme dual-core / Core TM 2 Duo / Intel® Pentium® D / Pentium® 4 / Celeron® D LGA775.

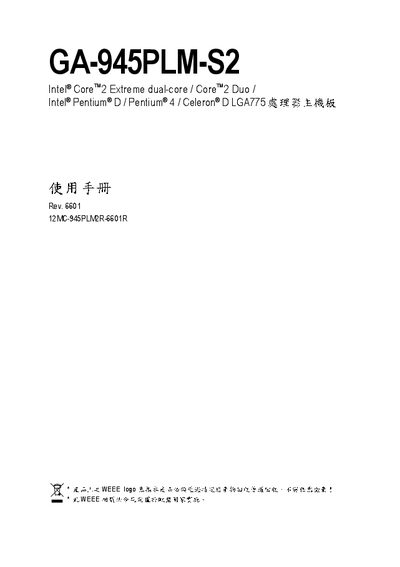

GA-945PLM-S2 Intel Core 2 Extreme dual-core Core 2 Duo Intel Pentium D Pentium 4 Celeron D LGA775 CPU system board Manual - cover page
Brand
GA-945PLM-S2
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
72
File format
PDF
File size
8.7 MB
Published
05 April, 2012
Updated
30 September, 2023
MD5 checksum
5F53146E3C4C672D7904DA1A574B5C94
PDF
GA-945PLM-S2 Intel Core 2 Extreme dual-core Core 2 Duo Intel Pentium D Pentium 4 Celeron D LGA775 CPU system board Manual PDF

About this manual

This manual covers the GA-945PLM-S2 motherboard, detailing the supported LGA775 processors such as Intel Core 2 Extreme, Core 2 Duo, Pentium D, Pentium 4 and Celeron D. It includes safety and compliance information, FCC and CE declarations, and WEEE requirements.

The guide walks through checking accessories, installing the CPU and cooling system, configuring BIOS options (standard CMOS, advanced features, power management, PnP/PCI, and PC health), and using unique utilities like EasyTune 5 and Xpress Recovery. Troubleshooting tips and part numbers for optional expansion boards are also provided. This manual is written in Chinese.

What's inside

  • Check Accessories
  • Installation Guide
  • BIOS Setup
  • Standard CMOS Features
  • Advanced BIOS Features
  • Integrated Peripherals
  • Power Management Setup
  • PNP/PCI Configurations
  • PC Health Status
  • Frequency/Voltage Control

Specifications

CPU SocketLGA775
Supported CPU Clock266 MHz – 1200 MHz
IDE ChannelsATA‑33/66/100
USB Ports8 × USB 2.0
Audio InterfaceSPDIF I/O

Frequently asked questions

How many USB ports does the GA-945PLM‑S2 provide?

The motherboard includes eight USB 2.0 ports.

Download PDF (8.7 MB)
