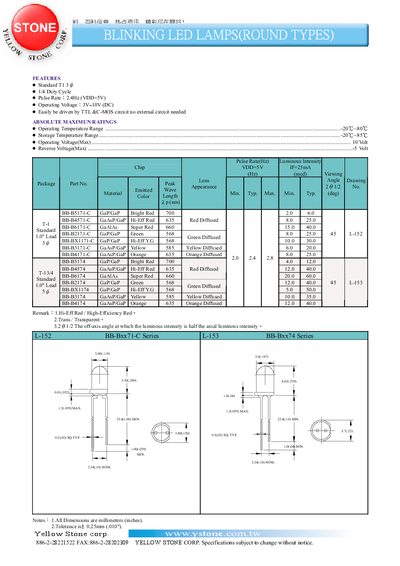

This document provides the specifications for Yellow Stone round‑type LED lamps. It lists electrical characteristics such as operating voltage, duty cycle, pulse rate, and temperature limits, as well as optical data for various color variants.
The data sheet includes part numbers, wavelength, luminous intensity ranges, and mechanical dimensions for each LED color option, helping designers select the appropriate component for their applications.
| Operating Voltage | 3 V ~ 10 V DC |
|---|---|
| Duty Cycle | 1/4 |
| Pulse Rate (VDD=5 V) | 2.4 Hz |
| Operating Temperature Range | -20 °C ~ 80 °C |
| Storage Temperature Range | -20 °C ~ 85 °C |
| Maximum Operating Voltage | 10 V |
The lamps operate from 3 V to 10 V DC.
The pulse rate is 2.4 Hz when VDD is 5 V.
They can operate between –20 °C and 80 °C, and be stored between –20 °C and 85 °C.
