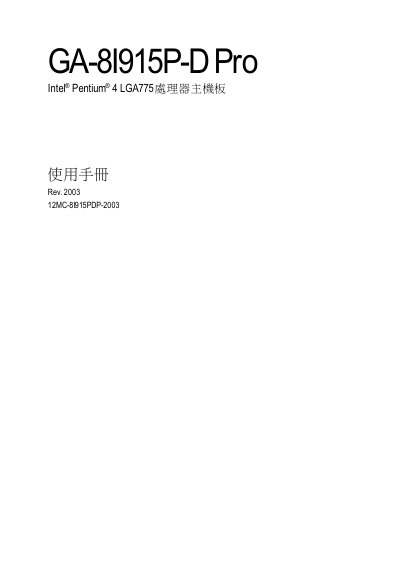

GA-8I915P-D Pro Intel Pentium 4 LGA775 CPU motherboard machine Manual

About this manual

This manual covers the complete setup of the GA-8I915P-D Pro motherboard, including hardware installation, connector descriptions, and step‑by‑step procedures for configuring BIOS options. It also contains troubleshooting tips and a quick reference for common issues.

Key sections include the hardware layout, Standard CMOS Features, Advanced BIOS Features, Integrated Peripherals, Power Management Setup, and the MB Intelligent Tweaker (M.I.T.) utility. The document provides detailed tables for supported CPUs, memory types, expansion slots, and I/O interfaces. This manual is written in Chinese.

What's inside

• Hardware Layout
• Standard CMOS Features
• Advanced BIOS Features
• Integrated Peripherals
• Power Management Setup
• PnP/PCI Configurations
• PC Health Status
• MB Intelligent Tweaker (M.I.T.)
• Load Fail‑Safe Defaults
• Set Supervisor/User Password

Specifications

Frequently asked questions

What CPU socket does the GA-8I915P-D Pro motherboard use?

It uses an LGA775 socket for Intel Pentium 4 processors.

How many USB ports are available on the GA-8I915P-D Pro?

The motherboard provides eight USB ports.
