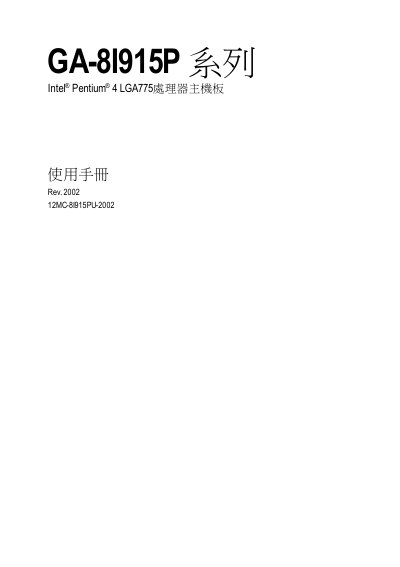

GA-8I915P series Intel Pentium 4 LGA775 CPU motherboard machine Manual(1)(1)

GA-8I915P series Intel® Pentium® 4 LGA775 processor motherboard user manual, this manual introduces the hardware installation, BIOS configuration settings, driver installation and other contents

Brand: GA-8I915P系列
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 80
File format: PDF
File size: 7.7 MB
Published: 05 April, 2012
Updated: 01 October, 2023
Model: GA-8I915P
MD5 checksum: A1726B7BBA8450E6789BBC4139570966
PDF: GA-8I915P series Intel Pentium 4 LGA775 CPU motherboard machine Manual(1)(1) PDF

About this manual

This manual covers the GA-8I915P series motherboard, detailing hardware installation, connector descriptions, and system configuration for Intel Pentium 4 LGA775 CPUs. It includes step‑by‑step guidance for BIOS setup, power‑management options, and troubleshooting common issues.

The document also lists the supported components such as DDR memory modules, PCI‑Express slots, SATA and IDE drives, USB ports, and audio codecs, and explains how to use the MB Intelligent Tweaker (M.I.T.) and other advanced features. This manual is written in Chinese.

What's inside

Motherboard Overview
Hardware Installation
Standard CMOS Features
Advanced BIOS Features
Integrated Peripherals
Power Management Setup
PC Health Status
MB Intelligent Tweaker (M.I.T.)

Specifications

CPU Socket	LGA775
Supported CPU	Intel® Pentium® 4
Front Side Bus	800/533 MHz
PCI‑Express Slots	x16 and x1
USB Ports	8 (USB 2.0/1.1)
IEEE 1394 Port	Yes
Audio Codec	C‑Media 9880

Frequently asked questions

What CPU socket does the GA-8I915P motherboard use?

It uses an LGA775 socket for Intel Pentium 4 processors.

How can I load the default BIOS settings?

Select the "Load Fail‑Safe Defaults" option in the BIOS setup menu.

How many USB ports are provided on the board?

The motherboard includes eight USB 2.0/1.1 ports.
