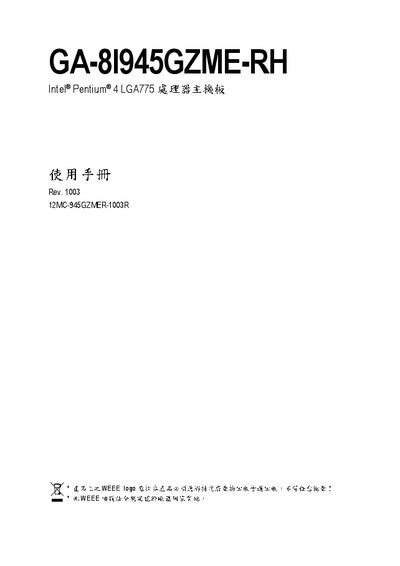

GA-8I945GZME-RH Intel Pentium 4 LGA775 CPU motherboard machine Manual

About this manual

This manual covers the hardware installation steps for the GA-8I945GZME-RH motherboard, including CPU and heatsink mounting, memory installation, and expansion card insertion. It also details the BIOS configuration options such as standard CMOS features, advanced BIOS functions, power management, and load defaults.

Additional sections describe the motherboard’s connectors and ports (8 USB ports, SATA, IDE, PCI‑Express X4, audio jacks) and provide troubleshooting guidance and unique feature introductions like EasyTune and Xpress Recovery. This manual is written in Chinese.

What's inside

• Hardware Installation
• Pre‑Installation Precautions
• CPU and Heatsink Installation
• Memory Installation
• Expansion Card Installation
• BIOS Setup Overview
• Standard CMOS Features
• Advanced BIOS Features
• Integrated Peripherals
• Power Management Setup

Specifications

Frequently asked questions

Which CPU socket does the GA-8I945GZME‑RH use?

It uses an LGA775 socket for Intel Pentium 4 processors.

How many USB ports are provided on the board?

The motherboard provides eight USB ports.

Where can I find the BIOS setup options?

BIOS setup options are listed in the manual under sections such as Standard CMOS Features, Advanced BIOS Features, and Power Management Setup.
