The GA-8I945G Pro / GA-8I945G motherboard supports Intel Pentium D / Pentium 4 processors, uses the LGA 775 socket, supports DDR2 memory, supports the 5 series chipset, and integrates Intel ICH7R south bridge chip, with 2 PCI slots, 3 PCI-E x1 slots, 2 SATA II interfaces, 2 IDE interfaces, 1 COM interface, 1 PS / 2 interface, 1 VGA interface, 1 DVI interface, 1 audio interface, 1 IEEE 1394 interface and 1 LAN interface

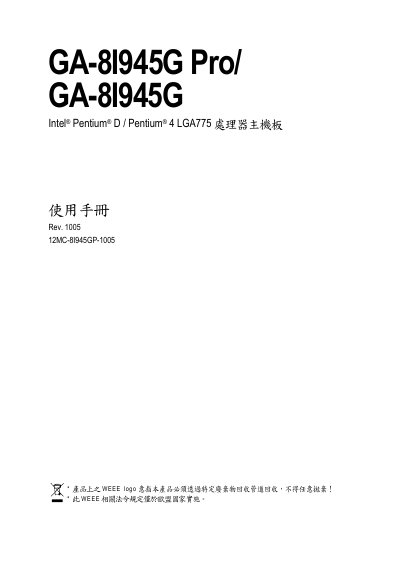

This manual covers the GA-8I945G Pro motherboard, detailing its hardware layout, supported processors, memory options, and peripheral connections. It includes step‑by‑step installation guidance and safety instructions.
Key sections describe BIOS features, power‑management settings, integrated peripherals, and diagnostic tools such as the MB Intelligent Tweaker. The document also provides contact information for technical support and warranty service. This manual is written in Chinese.
| CPU socket | LGA775 |
|---|---|
| Supported CPUs | Intel Pentium D / Pentium 4 |
| Expansion slots | 1 × PCI‑Express x16, 2 × PCI‑Express x1, 3 × PCI |
| USB ports | 8 × USB 2.0/1.1 |
It supports Intel Pentium D and Pentium 4 processors in an LGA775 package.
The board includes eight USB 2.0/1.1 ports.
It can accommodate up to 4 GB of DDR2 memory across four DIMM slots.
