GA-8I865PE775-G-RH (rev. 3.0) Intel Core 2 Extreme dual-core Core 2 Duo Intel Pentium D Intel Pentium 4 LGA775 CPU system board Manual

GA-8I865PE775-G-RH is a motherboard produced by GIGA-BYTE TECHNOLOGY CO., LTD. It supports Intel® Core TM 2 Extreme dual-core / Core TM 2 Duo Intel® Pentium® D / Intel® Pentium® 4 LGA775 CPU.

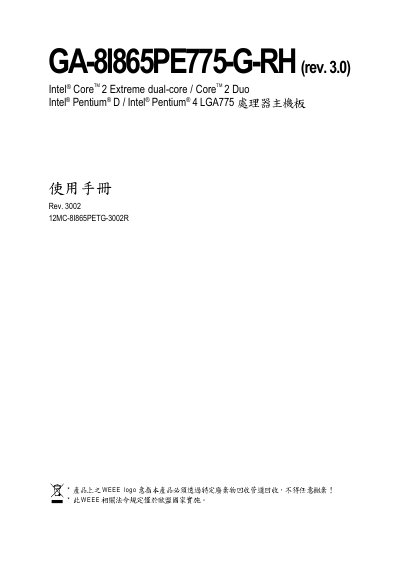

GA-8I865PE775-G-RH (rev. 3.0) Intel Core 2 Extreme dual-core Core 2 Duo Intel Pentium D Intel Pentium 4 LGA775 CPU system board Manual - cover page
Brand
GA-8I865PE775-G-RH
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
72
File format
PDF
File size
8.6 MB
Published
05 April, 2012
Updated
30 September, 2023
MD5 checksum
CD1986B19BF881236AD852F8839D86A0
PDF
GA-8I865PE775-G-RH (rev. 3.0) Intel Core 2 Extreme dual-core Core 2 Duo Intel Pentium D Intel Pentium 4 LGA775 CPU system board Manual PDF

About this manual

This manual provides detailed information for the Gigabyte GA‑8I865PE775‑G‑RH motherboard, covering supported CPUs, chipset features, memory configurations, and integrated peripherals. It includes step‑by‑step instructions for BIOS configuration, hardware installation, and troubleshooting.

The document also lists contact information for Gigabyte support centers worldwide and includes safety notices, warranty details, and regulatory compliance symbols such as the WEEE logo. This manual is written in Chinese.

What's inside

  • CPU Support and Socket
  • Chipset and Integrated Controllers
  • Memory Slots and Capacity
  • BIOS Setup Overview
  • Standard CMOS Features
  • Advanced BIOS Features
  • Integrated Peripherals
  • Power Management Setup
  • PCI and AGP Slots
  • Connector Layout and Port Descriptions

Specifications

CPU socketLGA775
ChipsetIntel 865G/865PE
SouthbridgeIntel ICH5
Ethernet controllerMarvell 88E8001 (10/100/1000 Mbit)
Audio codecRealtek ALC655
USB ports4 × USB 2.0, 2 × USB 1.1
IDE ports2 × IDE (UDMA 33/ATA 66/ATA 100)
DIMM slots4 × DDR (max 4 GB)
AGP slotAGP 4X/8X (1.5 V)

Frequently asked questions

Which CPUs are supported by the GA‑8I865PE775‑G‑RH motherboard?

The board supports LGA775 processors including Intel Core 2 Extreme dual‑core, Core 2 Duo, Pentium D, and Pentium 4.

How many DDR memory slots are available and what is the maximum memory?

There are four DDR DIMM slots that can accommodate up to 4 GB of memory.

What Ethernet controller is integrated on the board?

A Marvell 88E8001 controller providing 10/100/1000 Mbit Ethernet.

How many USB 2.0 ports does the motherboard provide?

The motherboard includes four USB 2.0 ports (plus two USB 1.1 ports).

Download PDF (8.6 MB)
