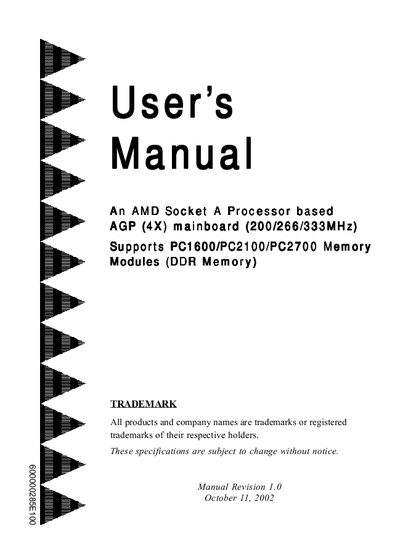

An AMD Socket A Processor based AGP (4X) mainboard (200/266/333MHz) Supports PC1600/PC2100/PC2700 Memory Modules User's Manual

This document is the user manual of an AGP (4X) mainboard with AMD Socket A Processor

Brand: An
Category: Motherboard
Document type: User Manual
Language: English
Pages: 86
File format: PDF
File size: 10 MB
Published: 05 April, 2012
Updated: 01 October, 2023
MD5 checksum: A6A503FB6CAD6A05F72B5B4A8820B1E8
PDF: An AMD Socket A Processor based AGP (4X) mainboard (200/266/333MHz) Supports PC1600/PC2100/PC2700 Memory Modules User's Manual PDF

About this manual

This manual provides an overview of the AMD Socket A based mainboard, describing its support for AMD Duron™ and Athlon™ processors, AGP 4X graphics interface, and DDR memory modules. It outlines the board's ATX form factor, power management features, and hardware monitoring capabilities.

The document includes detailed installation instructions, jumper settings, BIOS setup guidance, and appendices covering advanced chipset features, driver installation, and recovery procedures.

What's inside

Introduction
Overview
Mainboard Features
Installation Procedure
BIOS Setup
Power Management
Hardware Monitoring
Appendix

Specifications

CPU Socket	Socket A (PGA 462)
Supported CPU Speeds	200/266/333 MHz system interface
IDE Controller	Ultra ATA/66/100/133 Bus Master
Memory Support	PC1600/PC2100/PC2700 DDR modules
Form Factor	ATX (compatible with ATX 2.01 or later)

Frequently asked questions

What types of memory modules can be installed?

It accepts PC1600, PC2100, and PC2700 DDR memory modules.

What form factor is the mainboard designed for?

It follows the ATX form factor and should be used in an ATX 2.01 or later compliant case.
