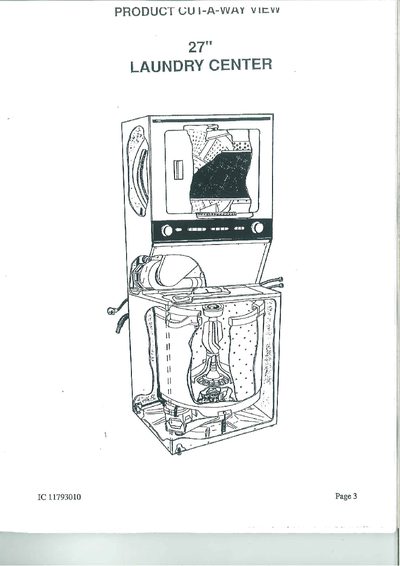

This guide provides step‑by‑step instructions for installing the 27" Laundry Center, including pre‑installation checks, electrical wiring, water and drain connections, and exhaust system setup. It also contains safety warnings and grounding procedures to ensure a safe and code‑compliant installation.
The manual details how to unpack the unit, level it, connect the dryer and washer components, and operate the appliance once installed. Technical specifications such as voltage, water pressure, and dryer capacity are included for reference.
| Voltage | 240 V |
|---|---|
| Power supply | 3‑wire, 240 V, single phase, 60 Hz |
| Circuit rating | 30 A branch circuit |
| Outlet type | NEMA 10‑30R receptacle |
| Water pressure | 10–120 psi |
| Hot water temperature | ≈140 °F |
| Drain capacity | 17 gal/min |
| Drain height | 33"–58" |
| Standpipe diameter | ≥1" |
| Exhaust duct minimum diameter | 4" |
| Dryer drum volume | 5.5 cu ft |
| Heater power | 4500 W |
| Motor power | 1/4 hp |
| Number of thermostats | 2 |
A NEMA 10‑30R receptacle must be installed so the power cord is accessible when the unit is in position.
The water pressure must be between 10 and 120 psi.
The exhaust duct must be at least 4 inches in diameter and be metal (rigid or flexible).
The drain must be capable of handling 17 gallons per minute.
