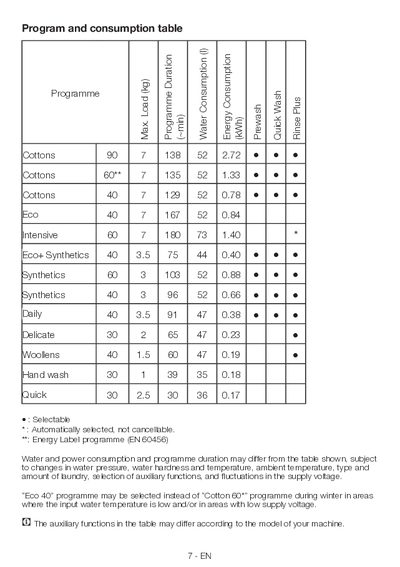

This document is a program and consumption table for a washing machine, showing the maximum load, duration, water consumption, and energy consumption of different programs. It also provides selectable auxiliary functions and other notes.
This manual explains how to select programs and auxiliary functions, operate the control panel, and use features such as the child‑proof lock, time delay, and anti‑creasing. It also describes how to start, pause, cancel, or modify a cycle and how the machine indicates progress.
Maintenance sections cover cleaning the detergent drawer, inlet water filters, and the pump filter, as well as troubleshooting common problems and detailed specifications for both models.
| Maximum dry laundry capacity | 7 kg |
|---|---|
| Height | 84 cm |
| Width | 60 cm |
| Depth | 54 cm |
| Net weight | 72 kg |
| Electricity | 230 V / 50 Hz |
| Total current | 10 A |
| Total power | 2200 W |
| Spinning cycle (max) | 1000 rpm (PW710L) / 800 rpm (PW708L) |
Press the “Start/Pause/Cancel” button for 3 seconds; the Ready lamp flashes and “End” appears on the display.
