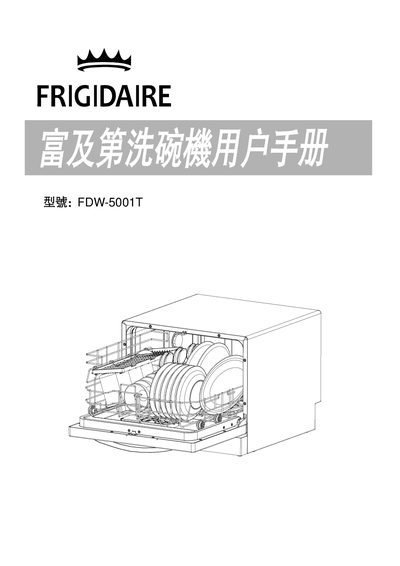

This document is an introduction to the FDW-5001T product, mainly describing its features and characteristics.
This manual covers safety instructions, proper operation of the control panel, and detailed washing program selections for the Frigidaire FDW-5001T dishwasher. It also explains how to add detergent, rinse aid, and optional water softener, as well as guidelines for loading dishes safely.
Installation steps, electrical grounding, water‑inlet pressure limits, and routine maintenance procedures are described, followed by a fault‑analysis section that helps users diagnose common problems and when to contact service personnel. This manual is written in Chinese.
| Height | 438 mm |
|---|---|
| Width | 550 mm |
| Depth | 500 mm |
| Maximum water consumption | 11 L |
| Water inlet pressure (min‑max) | 0.04‑1.0 MPa |
| Water inlet temperature (max) | 60 °C |
| Rated voltage | 110 VAC 60 Hz |
| Capacity | 6 place settings |
The dishwasher can operate with a water pressure up to 1 MPa.
It is designed for up to 6 place settings.
Turn off the power, close the water tap, and contact a qualified service technician.
