This is a washing machine instruction manual

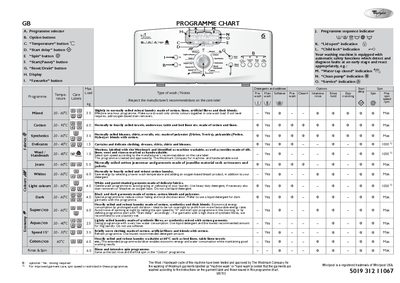

This document provides the complete programme chart for the Whirlpool GB washing machine, showing the available wash cycles, temperature ranges, spin speeds, and optional functions such as Prewash, Clean+, and Start delay. It also explains how to select programmes, adjust options, and save favourite settings.
Additional sections give consumption data for each programme, instructions for using features like Start delay, Rinse hold, and button lock, and guidance on troubleshooting indications such as "Service" or "Water tap closed".
| Mixed programme load capacity | 3.0 kg |
|---|---|
| Mixed programme energy consumption | 0.45 kWh |
| Mixed programme duration | 40 minutes |
| Cotton 95 °C programme load capacity | 6.0 kg |
| Cotton 95 °C programme energy consumption | 1.90 kWh |
| Cotton 95 °C programme duration | 55 minutes |
Press and hold the “Favourites” button for at least 3 seconds; the lamp will flash and then stay lit, indicating the programme is saved.
Press the “Start delay” button to select a delay time up to 23 hours, then press “Start(Pause)”. The countdown begins and the delay indicator blinks until the programme starts.
Press the temperature and spin speed buttons simultaneously and hold them for at least 3 seconds; the key symbol will appear on the display.
