GA-8I945P Pro/ GA-8I945P-G Intel Pentium D Pentium 4 LGA775 CPU system board Manual

GA-8I945P Pro/GA-8I945P-G is a motherboard from GIGA-BYTE TECHNOLOGY CO., LTD. that supports Intel® Pentium® D / Pentium® 4 LGA775 processors and features the Intel ICH7R/ICH7 chipset.

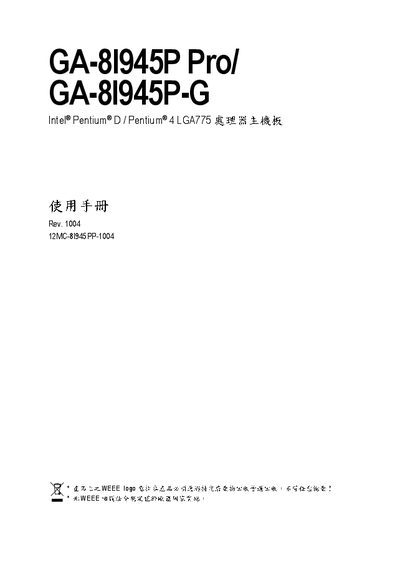

GA-8I945P Pro/ GA-8I945P-G Intel Pentium D Pentium 4 LGA775 CPU system board Manual - cover page
Brand
GA-8I945P
Category
Motherboard
Document type
User Manual
Language
Chinese
Pages
88
File format
PDF
File size
9 MB
Published
01 April, 2012
Updated
30 September, 2023
MD5 checksum
CCF65B8AEF773D7A7C4634DB5819025A
PDF
GA-8I945P Pro/ GA-8I945P-G Intel Pentium D Pentium 4 LGA775 CPU system board Manual PDF

About this manual

This manual covers the hardware installation steps for the GA-8I945P Pro and GA-8I945P‑G motherboards, including CPU, cooling, and peripheral connections. It also details BIOS configuration options such as power management, integrated peripherals, and memory settings.

Additional sections describe driver installation, utility software (EasyTune, Xpress Recovery), and a list of supplied accessories. Contact information for Gigabyte technical support worldwide is provided at the end of the document. This manual is written in Chinese.

What's inside

  • Hardware Installation
  • BIOS Settings
  • Driver Installation
  • Utilities Overview
  • Accessories List
  • Technical Support Information

Specifications

ChipsetIntel 945P
CPU SocketLGA775
Memory TypeDDRII 667
PCI Express SlotsPCI‑E x16, PCI‑E x1
SATA Ports3 Gb/s SATA

Frequently asked questions

Which motherboard models are covered by this manual?

The manual applies to the GA‑8I945P Pro and GA‑8I945P‑G motherboards.

What CPU frequencies are supported?

Supported CPU clock frequencies are 133 MHz, 200 MHz, and 266 MHz.
